The 2500-F Twintrack rail features a 26 mm height and 450 mm width, equipped with spring-loaded foot pedal release on both sides, a customizable anti-slip top plate, and supports flush and deck mounting with an optional angled stainless steel bulkhead frame.
- Description
- Ask a Question
-

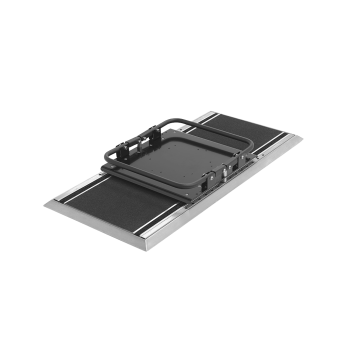

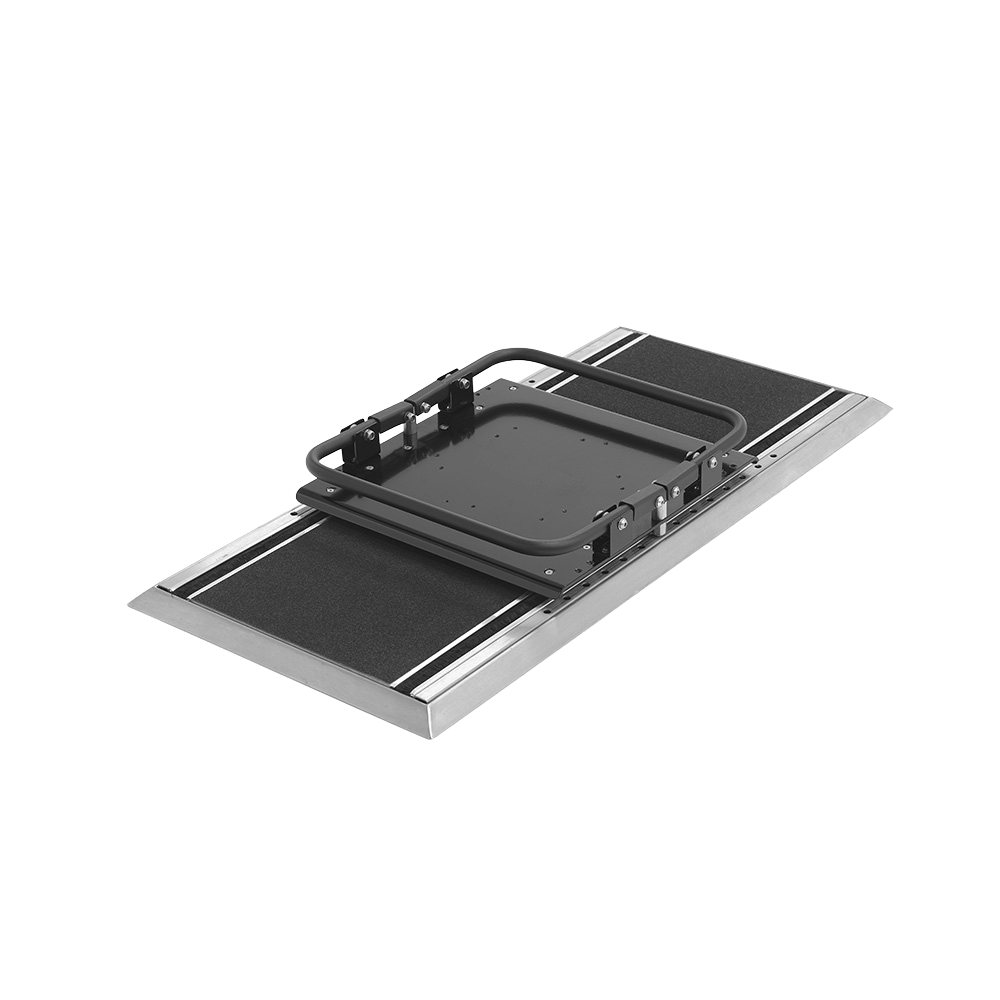

Zwaardvis 2500-F - Twintrack Rail Double Foot Release L= 2500mm
The 2500-F Twintrack rail features a height of 26 mm and width of 450 mm. It is equipped with linear guides with brush covers and a stainless steel frame. The helm seat carrier locks every 40 mm and releases by a spring-loaded foot pedal operated on both sides. The top plate includes an anti-slip layer, which can be customized. Suitable for flush and deck mounting, with an optional stainless steel bulkhead frame with a 45° angled surface for deck mount. A flat mounting surface is required for smooth sliding.
- Height: 26 mm
- Width: 450 mm
- Locking Interval: Every 40 mm
- Locking Mechanism: Spring-loaded foot pedal, foot-operated on 2 sides
- Top Plate: Anti-slip layer, customizable
- Mounting: Flush mount or deck mount
- Optional: Stainless steel bulkhead frame with 45° angle for deck mount
- Length: 2500 mm
- Product Code: 22.60.325
-
