ID
1311904
$ 3,841.84
1-2 weeks delivery time
-
+
The 1170-F Twintrack rail offers the same features as the 1010-F model but with a length of 1170 mm, including spring-loaded foot pedal release on both sides, customizable anti-slip top plate, and options for flush or deck mounting with an optional angled bulkhead frame.
- Description
- Ask a Question
-

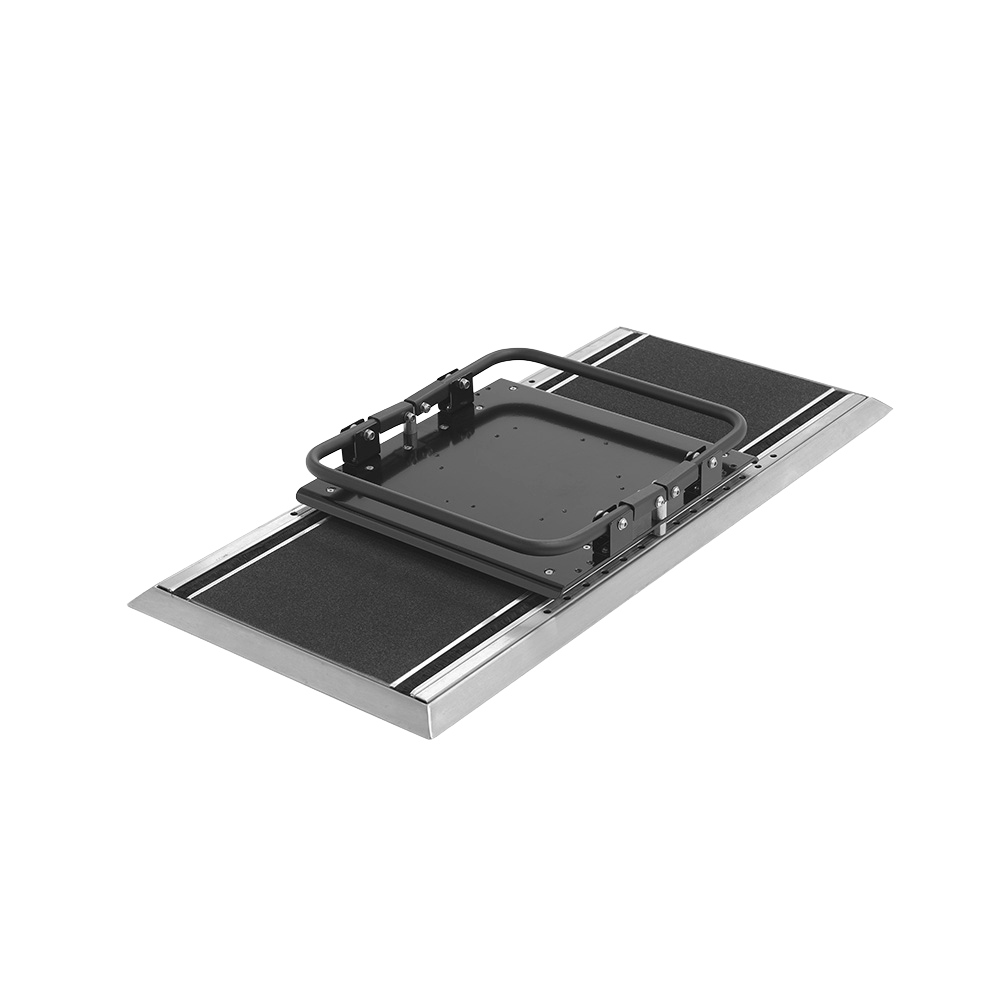

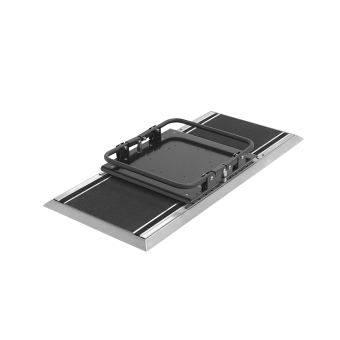

Zwaardvis 1170-F - Twintrack Rail Double Foot Release L= 1170mm
The 1170-F Twintrack rail features a low 26 mm height and 450 mm width, with linear guides protected by brush covers and a stainless steel frame. The helm seat carrier locks every 40 mm and releases via a spring-loaded foot pedal operated on both sides. The top plate includes an anti-slip layer, customizable if desired. Suitable for flush and deck mounting, with an optional stainless steel bulkhead frame with a 45° angled surface for deck mount. A flat mounting surface is required for smooth sliding.
- Height: 26 mm
- Width: 450 mm
- Locking Interval: Every 40 mm
- Locking Mechanism: Spring-loaded foot pedal, foot-operated on 2 sides
- Top Plate: Anti-slip layer, customizable
- Mounting: Flush mount or deck mount
- Optional: Stainless steel bulkhead frame with 45° angle for deck mount
- Length: 1170 mm
- Product Code: 22.60.311
-
