ID
1311903
$ 3,667.21
1-2 weeks delivery time
-
+
The 1010-F Twintrack rail is a low-profile decktrack with a height of 26 mm and width of 450 mm, featuring linear guides, a stainless steel frame, and a helm seat carrier that locks every 40 mm and releases via a spring-loaded foot pedal operated on both sides; it includes a customizable anti-slip top plate and supports flush and deck mounting with an optional angled bulkhead frame.
- Description
- Ask a Question
-

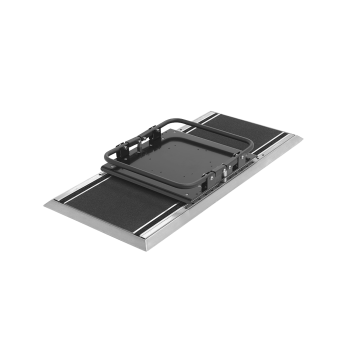

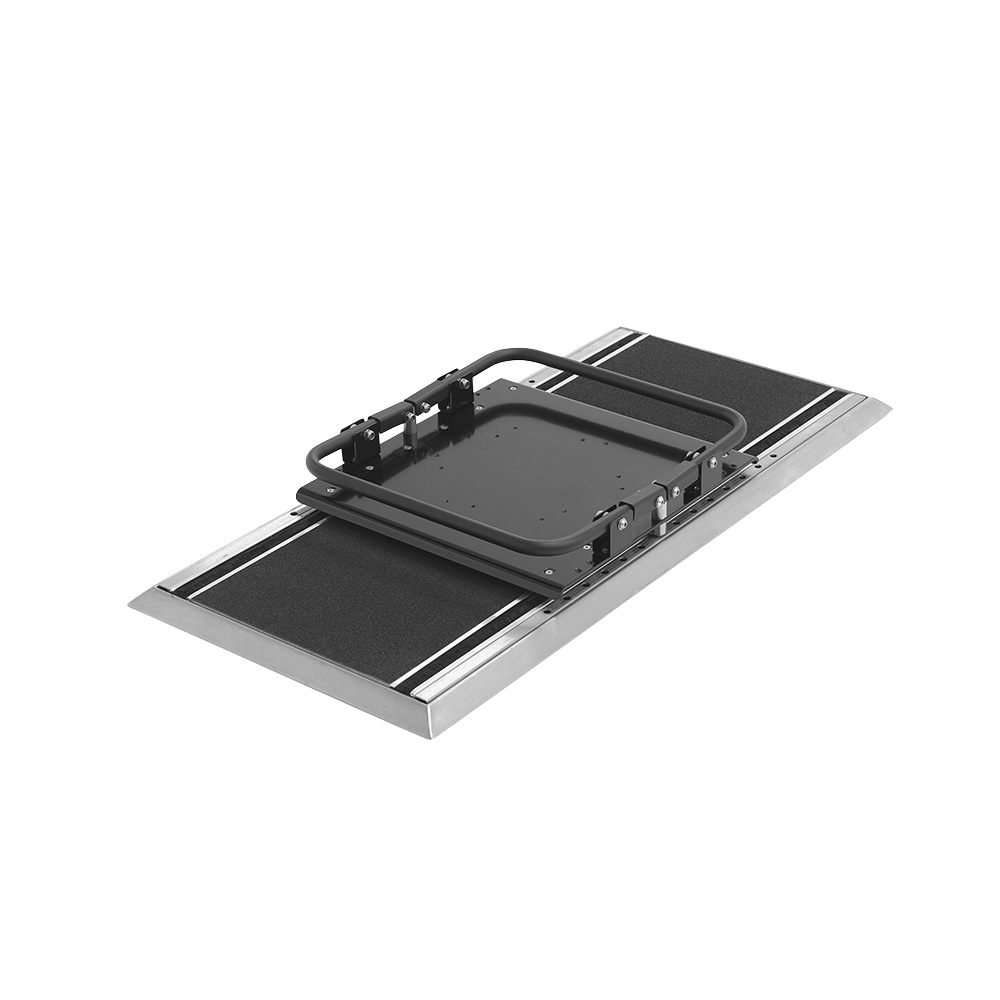

Zwaardvis 1010-F - Twintrack Rail Double Foot Release L= 1010mm
The 1010-F Twintrack rail is the lowest decktrack with a height of 26 mm and width of 450 mm. It features linear guides with brush covers and a stainless steel frame. The helm seat carrier locks every 40 mm and is released by a spring-loaded foot pedal operated on both sides. The top plate has an anti-slip layer, customizable as needed. Suitable for flush and deck mounting, with an optional stainless steel bulkhead frame with a 45° angled surface for deck mount. A flat mounting surface is necessary for smooth sliding.
- Height: 26 mm
- Width: 450 mm
- Locking Interval: Every 40 mm
- Locking Mechanism: Spring-loaded foot pedal, foot-operated on 2 sides
- Top Plate: Anti-slip layer, customizable
- Mounting: Flush mount or deck mount
- Optional: Stainless steel bulkhead frame with 45° angle for deck mount
- Length: 1010 mm
- Product Code: 22.60.310
-
