The Isotemp 601523S000003 Slim 15L marine water heater uses a 115V/750W immersion element and a stainless-steel 4-gallon tank with an integrated mixing valve. With the heater and heat exchanger positioned low in the cylinder, it delivers uniform water heating, while optimized inlet/outlet geometry reduces cold-water mixing for higher effective hot-water capacity in compact installations.
- Description
- Ask a Question
-

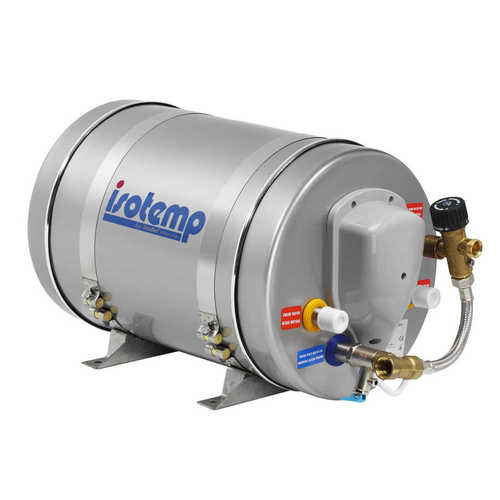

Isotemp 601523S000003 Slim 15L Marine Water Heater 115V / 750W with Mixing Valve
The Isotemp 601523S000003 Slim 15L (4-gallon) marine water heater is built with a brushed stainless-steel exterior and an optimized internal layout to deliver high heating efficiency in limited onboard spaces. The 115V / 750W immersion heater and the engine-water heat exchanger are installed at the lowest part of the tank to ensure even temperature distribution. The heater’s specialized inlet/outlet design minimizes the mixing of hot and cold water, increasing the usable hot-water volume. This version is supplied with a thermostat-controlled mixing valve for safe and stable outlet temperatures.
Key Features
- 15-liter (4-gallon) stainless-steel marine water heater.
- 115V / 750W immersion heating element.
- Integrated mixing valve with thermostat control.
- Low-mounted heater and heat exchanger for uniform heating.
- Optimized in/out ports to minimize cold-water intrusion.
- Slim cylindrical form ideal for confined onboard installations.
Technical Specifications
Part Number 601523S000003 Model Slim 15L Water Heater Capacity 15 L / 4 gallons Voltage / Power 115V AC / 750W Tank Material Brushed stainless steel Dimensions Length: 21 in
Outside Diameter: 12 inUnit Weight 35 lbs Volume (Cubic Feet) 4 Special Instructions Includes thermostat-controlled mixing valve
Included in the Package
- Isotemp Slim 15L stainless-steel water heater
- 115V / 750W immersion heating element
- Thermostat-controlled mixing valve
- Engine-water heat exchanger connections
- Installation and safety documentation
The Isotemp Slim 15L 115V water heater provides reliable and efficient hot-water production for marine applications, combining compact dimensions with optimized thermal performance.
Documents
Isotemp Basic Slim Water Heater Manual Size: 6,6 MbIsotemp Basic Slim Water Heater Spare Parts List Size: 798,6 Kb -
