The Isotemp 602431BD00003 Basic 24L water heater features a 6.4-gallon stainless-steel tank with a 230V/750W immersion heater, dual heat-exchange coils, a dual thermostat system and an integrated mixing valve. This configuration increases heating efficiency, supports multiple engine-circuit connections and ensures uniform water temperature with reduced cold-water mixing.
- Description
- Ask a Question
-

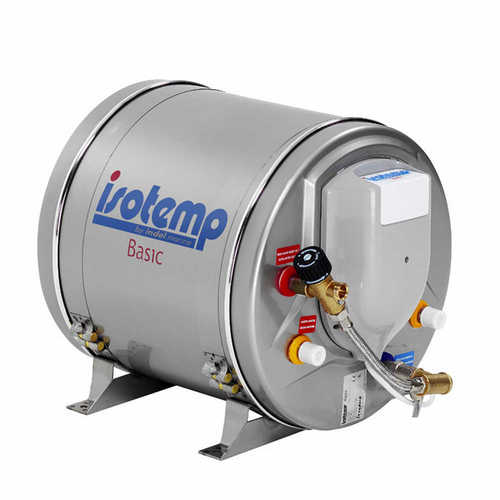

Isotemp 602431BD00003 Basic 24L Water Heater 230V / 750W with Double Coil, Double Thermostat and Mixing Valve
The Isotemp 602431BD00003 Basic 24L (6.4-gallon) marine water heater is a high-performance unit designed for vessels requiring enhanced heating efficiency and flexible installation options. It features a brushed stainless-steel tank and an optimized internal layout with the 230V / 750W immersion heater and heat exchangers positioned at the lowest part of the tank for maximum energy transfer and uniform water heating.
This model includes two engine-water heat-exchange coils, enabling integration with dual cooling circuits or improved heat-recovery performance. In addition, the double thermostat system increases operational safety and fine control of water temperature. A built-in thermostat-controlled mixing valve ensures stable and safe hot-water delivery while reducing cold-water mixing at the inlets.Key Features
- 24-liter (6.4-gallon) stainless-steel marine water heater.
- 230V / 750W immersion heating element.
- Double heat-exchange coil configuration for multi-circuit integration.
- Dual thermostat system for enhanced temperature control and safety.
- Integrated thermostat-controlled mixing valve.
- Special inlet/outlet design minimizing cold/hot water mixing.
- Durable brushed stainless-steel external cover.
- Compact Basic Series cylindrical form for versatile installation.
Technical Specifications
Part Number 602431BD00003 Model Basic 24L – Double Coil, Double Thermostat Capacity 24 L / 6.4 gallons Voltage / Power 230V AC / 750W Heat Exchanger Dual engine-water coils Thermostat Dual thermostat system Tank Material Brushed stainless steel Dimensions Length: 19 in
Outside Diameter (OD): 16 inUnit Weight 44 lbs (approx.) Special Instructions Includes double coil, double thermostat and mixing valve
Included in the Package
- Isotemp Basic 24L stainless-steel water heater
- 230V / 750W immersion heating element
- Double engine-water heat-exchange coils
- Dual thermostat assembly
- Integrated mixing valve
- Installation and safety documentation
The Isotemp 24L Basic Double-Coil model delivers superior hot-water availability, multi-circuit compatibility and advanced temperature control—ideal for yachts and marine installations requiring efficient and flexible onboard hot-water systems.
Documents
Isotemp Basic Slim Water Heater Spare Parts List Size: 798,6 KbIsotemp Basic Slim Water Heater Manual Size: 6,6 Mb -
