ID
1303229
$ 1,026.82
1-2 weeks delivery time
-
+
The Isotemp 602023S000003 Slim 20L marine water heater features a 5.3-gallon stainless-steel tank with a 115V/750W immersion heater and an integrated mixing valve. With the heater and heat exchanger installed at the lowest point for even heat distribution, and optimized inlet/outlet geometry to reduce cold-water mixing, the unit delivers maximum usable hot-water capacity for compact onboard systems.
- Description
- Ask a Question
-

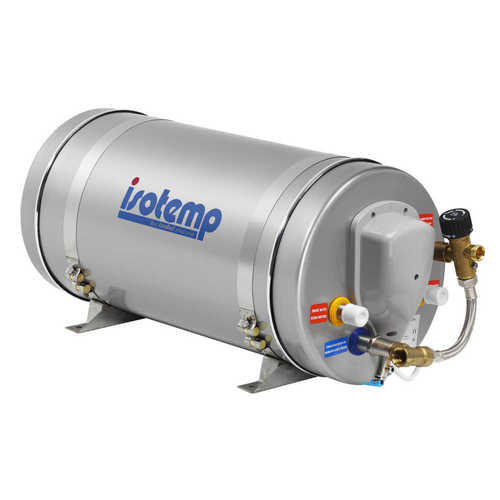

Isotemp 602023S000003 Slim 20L Marine Water Heater 115V / 750W with Mixing Valve
The Isotemp 602023S000003 Slim 20L (5.3-gallon) stainless-steel marine water heater belongs to the premium Isotemp Slim & Basic series. It features an optimized internal design with both the 115V / 750W immersion heating element and the engine-water heat exchanger mounted at the lowest part of the tank. This configuration ensures uniform heating across the full capacity of the cylinder.
Specially engineered inlet and outlet ports significantly reduce mixing between incoming cold water and the stored hot water, increasing the effective hot-water volume. A thermostat-based mixing valve is included for stable, safe outlet temperature control in marine environments.Key Features
- 20-liter (5.3-gallon) stainless-steel marine water heater.
- 115V / 750W immersion heating element.
- Integrated thermostat-controlled mixing valve for safe hot-water delivery.
- Low-mounted heater and heat exchanger for uniform water heating.
- Optimized water inlet/outlet design to minimize temperature stratification.
- Compact Slim Series design suitable for tight installation areas onboard.
Technical Specifications
Part Number 602023S000003 Model Slim 20L Water Heater Capacity 20 L / 5.3 gallons Voltage / Power 115V AC / 750W Tank Material Brushed stainless steel Dimensions Length: 26 in
Outside Diameter: 12 inUnit Weight 37 lbs Volume (Cubic Feet) 5.3 Special Instructions Includes thermostat-controlled mixing valve
Included in the Package
- Isotemp Slim 20L stainless-steel water heater
- 115V / 750W immersion heating element
- Thermostat-controlled mixing valve
- Engine-water heat exchanger connections
- Installation and maintenance documentation
The Isotemp Slim 20L 115V model provides reliable marine hot-water performance with compact dimensions, making it ideal for sailboats, motorboats, and yachts requiring efficient onboard heating.
Documents
Isotemp Basic Slim Water Heater Manual Size: 6,6 MbIsotemp Basic Slim Water Heater Spare Parts List Size: 798,6 Kb -
