The Isotemp 602523S000003 Slim 25L marine water heater features a 6.5-gallon stainless-steel tank with a 115V/750W immersion heater and an integrated mixing valve. With low-mounted heating components for uniform temperature distribution and optimized inlet/outlet geometry to limit cold-water mixing, it provides maximum hot-water output in compact Slim-series installations.
- Description
- Ask a Question
-

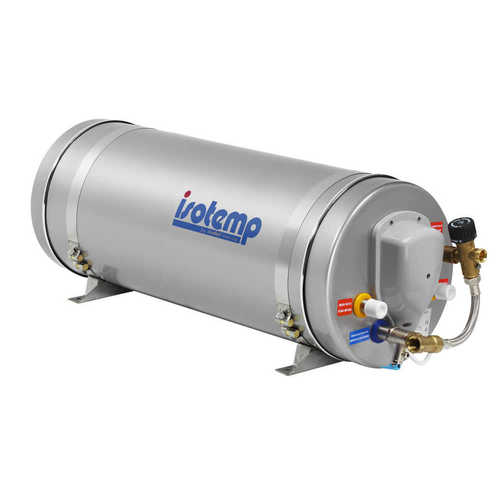

Isotemp 602523S000003 Slim 25L Water Heater 115V / 750W with Mixing Valve
The Isotemp 602523S000003 Slim 25L (6.5-gallon) water heater is part of the premium Slim & Basic series designed for high-efficiency onboard hot-water production. Featuring a brushed stainless-steel exterior, the heater incorporates a 115V / 750W immersion heating element and an engine-water heat exchanger, both mounted at the lowest point in the tank to ensure even heating throughout the full 25-liter volume.
With specially engineered inlet and outlet ports that reduce cold-water mixing, the Slim 25L delivers a significantly higher usable hot-water capacity. The integrated thermostat-controlled mixing valve provides safe, steady output temperature in marine environments.Key Features
- 25-liter (6.5-gallon) stainless-steel marine water heater.
- 115V / 750W immersion heating element positioned for maximum efficiency.
- Integrated thermostat-controlled mixing valve.
- Engine-water heat exchanger for additional heating capability.
- Optimized inlet/outlet geometry to limit mixing with cold water.
- Slim cylindrical design suitable for tight installation spaces on board.
Technical Specifications
Part Number 602523S000003 Model Slim 25L Water Heater Capacity 25 L / 6.5 gallons Voltage / Power 115V AC / 750W Tank Material Brushed stainless steel Dimensions Length: 31 in
Outside Diameter (OD): 12 inUnit Weight 42 lbs Volume (Cubic Feet) 6.5 Special Instructions Supplied with thermostat-controlled mixing valve
Included in the Package
- Isotemp Slim 25L stainless-steel water heater
- 115V / 750W immersion heating element
- Engine-water heat exchanger connections
- Thermostat-controlled mixing valve
- Installation and safety documentation
The Isotemp Slim 25L 115V model offers reliable hot-water production, uniform heating, and a compact footprint—ideal for yachts and vessels with limited installation space that require high-performance marine water heating.
Documents
Isotemp Basic Slim Water Heater Manual Size: 6,6 MbIsotemp Basic Slim Water Heater Spare Parts List Size: 798,6 Kb -
