ID
1303169
$ 2,912.82
1-2 weeks delivery time
-
+
The Isotherm B041TNAAP17411AR BI 41(II)/Magnum is a 41-liter built-in marine fridge/freezer featuring a remote Magnum sea-water–cooled compressor installed up to 2 meters away via X-couplings. The unit operates between +10°C and –12°C, uses 12/24V DC power, and offers compact dimensions of 380 × 395 × 395 mm plus a 165 mm compressor section, with a total weight of 15.5 kg and 270 Wh/24h average consumption.
- Description
- Ask a Question
-
Isotherm B041TNAAP17411AR – Built-In Dual Fridge/Freezer BI 41(II)/Magnum, 41L, 12/24V, Remote Magnum Compressor 2 m with X-Couplings

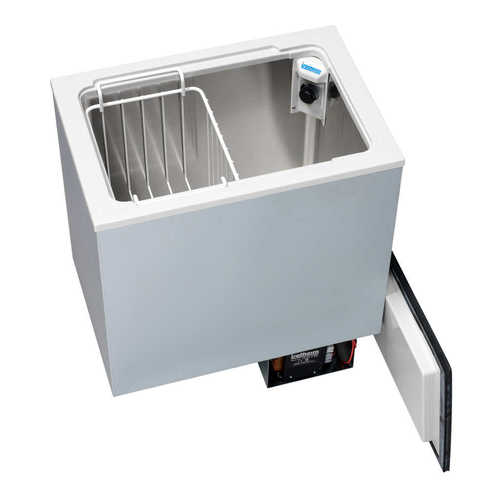

The Isotherm BI 41 Dual (model B041TNAAP17411AR) is a high-performance 41-liter built-in refrigerator/freezer designed for demanding marine environments. This version is equipped with the Magnum sea-water–cooled remote compressor, offering superior cooling efficiency and quiet operation. The compressor can be mounted up to 2 meters away using X-couplings, enabling flexible installation and optimal thermal management. The interior features a stainless-steel lining, durable plastic bottom and a removable basket. The system operates within a wide temperature range from +10°C to –12°C and is powered by a 12/24V DC supply. Typical consumption is 270 Wh/24h under ISO 15502 and EN 153 test standards.
Parameter Specification Gross Volume 41 liters Function Dual-mode: fridge or freezer Voltage 12/24V DC Temperature Range +10°C to –12°C Compressor Type Magnum sea-water–cooled remote compressor Remote Compressor Line Length 2 m via X-couplings Energy Consumption 270 Wh / 24 h Interior Stainless-steel lining, plastic bottom, storage basket Dimensions (H × W × D) 380 × 395 × 395 mm + 165 mm compressor section Weight 15.5 kg Options ASU compatibility, water-cooled versions, stainless-steel flange
- Magnum sea-water–cooled compressor for maximum cooling efficiency.
- 41-liter stainless-steel interior with durable bottom and basket.
- Wide temperature range from +10°C to –12°C for refrigeration or freezing.
- Compressor installable up to 2 m away using X-couplings for flexible mounting.
- Low consumption of 270 Wh/24h under ISO-standard conditions.
- Compact marine-friendly dimensions and easy integration.
- Available ASU control and optional stainless-steel flange.
-
