The Isotherm B041TNAAP17311AR BI 41(II)/SP is a 41-liter built-in fridge/freezer with stainless-steel interior and a remote SP air-cooled compressor installed at 2 + 1.2 meters via X-couplings. Operating from +10°C down to –12°C, it runs on 12/24V DC, weighs 15.5 kg, and features compact dimensions of 380 × 395 × 395 mm with an additional 165 mm compressor section. Average consumption is 270 Wh/24h.
- Description
- Ask a Question
-
Isotherm B041TNAAP17311AR – Built-In Dual Fridge/Freezer BI 41(II)/SP, 41L, 12/24V, Remote SP Compressor 2 + 1.2 m with X-Couplings

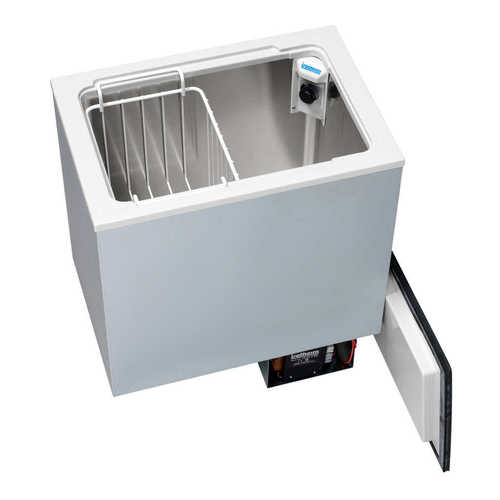

The Isotherm BI 41 Dual (model B041TNAAP17311AR) is a 41-liter built-in refrigerator/freezer equipped with the efficient SP air-cooled remote compressor system. This version includes extended installation length of 2 + 1.2 meters through secure X-couplings, offering maximum flexibility for remote mounting in confined marine spaces. The stainless-steel lined interior, plastic floor, and removable basket provide durable and practical storage. With an operating range from +10°C to –12°C, the unit delivers reliable cooling or freezing performance under 12/24V DC supply, powered by the proven Secop BD35F compressor platform. Energy consumption averages 270 Wh/24h under ISO 15502 and EN 153 testing conditions.
Parameter Specification Gross Volume 41 liters Function Dual-mode: fridge or freezer Voltage 12/24V DC Temperature Range +10°C to –12°C Compressor Type SP remote compressor (Secop BD35F platform) Remote Compressor Line Length 2 m + 1.2 m via X-couplings Energy Consumption 270 Wh / 24 h Interior Stainless-steel lining, plastic bottom, storage basket Dimensions (H × W × D) 380 × 395 × 395 mm + 165 mm compressor section Weight 15.5 kg Options ASU available; water-cooled versions; stainless-steel mounting flange
- Dual refrigerator or freezer function with +10°C to –12°C range.
- Remote SP compressor with extended 2 + 1.2 m installation via X-couplings.
- 41-liter stainless-steel interior with plastic bottom and internal basket.
- 12/24V DC power supply for marine electrical systems.
- Energy-efficient Secop BD35F-based compressor performance.
- Compact installation footprint ideal for yachts and sailboats.
- Compatible with ASU control and water-cooled variants.
- Optional stainless-steel external flange for flush mounting.
-
