ID
1176691
$ 150.56
1-2 weeks delivery time
-
+

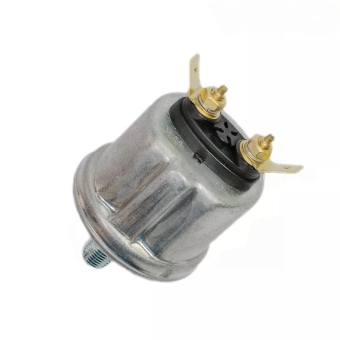

The VDO 360-081-030-122C pressure sender is a robust analog sensor for monitoring oil, fuel, and air pressure up to 10 bar in automotive, marine, and industrial systems. Built for easy integration with VDO engine monitoring, it outputs a 10–184 ohm signal via a single-pole common ground connection and adds an extra layer of protection with a warning contact that closes on falling pressure at 0.75 bar ± 0.20 bar. An M18 x 1.5 thread supports secure installation, while its wide operating temperature range helps maintain dependable readings in demanding environments.
- Description
- Ask a Question
-
VDO Analog Pressure Sender with Warning Contact (0–10 Bar)
The VDO 360-081-030-122C is an analog pressure sender designed for accurate monitoring of oil, fuel, and air pressure in demanding automotive, marine, and industrial installations. It provides a stable 10–184 ohm output for VDO engine monitoring systems and includes a dedicated warning contact that closes with falling pressure to help alert operators to critical pressure drops.
Compatibility
- VDO engine monitoring systems
- Oil pressure monitoring systems
- Fuel pressure monitoring systems
- Air pressure monitoring systems
- Automotive applications
- Marine applications
- Industrial applications
Product Details
- Brand: VDO
- Part Number: 360-081-030-122C
- Component Type: Pressure Sender
- Measured Media: Oil, Fuel, Air
- Signal Type: Analog, single-pole common ground
- Packaging: VDO sensor retail package
Features
- Measures pressure from 0 to 10 bar for versatile system monitoring
- Warning contact supports safety-focused installations by triggering at low pressure
- Stable analog output designed for seamless pairing with VDO instrumentation
- Threaded installation supports a secure fit in pressurized circuits
- Designed to perform reliably across a wide operating temperature range
Technical Specifications
Pressure Range 0–10 bar (0–145 PSI, 0–1000 kPa) Maximum Pressure 30 bar (for 2 seconds) Thread M18 x 1.5 male Thread Length + Nut (L1) 20.5 mm Thread Length (L2) 12 mm Installation Torque 100 Nm Operating Temperature -25°C to +100°C Operating Voltage 6–24 V DC Sender Resistance 10–184 ohm Sensor Signal Single-pole common ground Warning Contact Set Point 0.75 bar ± 0.20 bar Warning Contact Function Closes with falling pressure Warning Contact Switching Capacity Max. 5 W (non-inductive) Pressure Sender Connector M4 AMP male 4.8 x 0.8 mm Warning Contact Connector M4 AMP male 6.3 x 0.8 mm EAN 4103590695789 HS Code 90269000 Weight 0.14 kg Country of Origin Germany Alternative Notation 360 081 030 122C; 360/81/30/122C -
