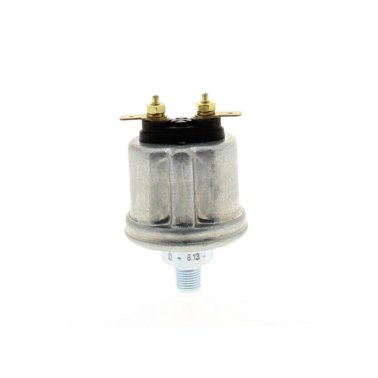

The VDO 360-081-032-003C pressure sender is an engine-monitoring sensor designed to measure oil pressure from 0 to 10 bar with an analog 10–184 Ohm output for compatible VDO instrumentation. Built with a dual-pole insulated return signal and an M10 x 1 male tapered short thread, it provides a secure, stable installation and dependable readings across oil, fuel, or air pressure circuits in 6–24 V DC systems.
- Description
- Ask a Question
-
VDO Engine Oil Pressure Sender 0 to 10 Bar, M10 x 1
The VDO 360-081-032-003C is an analog pressure sender for engine monitoring, designed to report system pressure to compatible gauges and monitoring electronics. With a measuring range of 0–10 bar and a stable 10–184 Ohm signal, it supports accurate pressure tracking for critical circuits such as engine oil pressure. The M10 x 1 male tapered short thread helps ensure a secure fit, while the dual-pole insulated return design supports reliable signal integrity.
Compatibility
- VDO Engine Monitoring (6–24 V DC systems)
- Oil pressure circuits
- Fuel pressure circuits
- Air pressure circuits
Product Details
- Brand: VDO
- Part Number: 360-081-032-003C
- Component Type: Pressure Sender
- Function: Engine oil pressure monitoring
- Connection Type: A
- Country of Origin: Germany
- EAN Code: 4103590691149
- HS Code: 90269000
- Weight: 0.12 kg
Technical Specifications

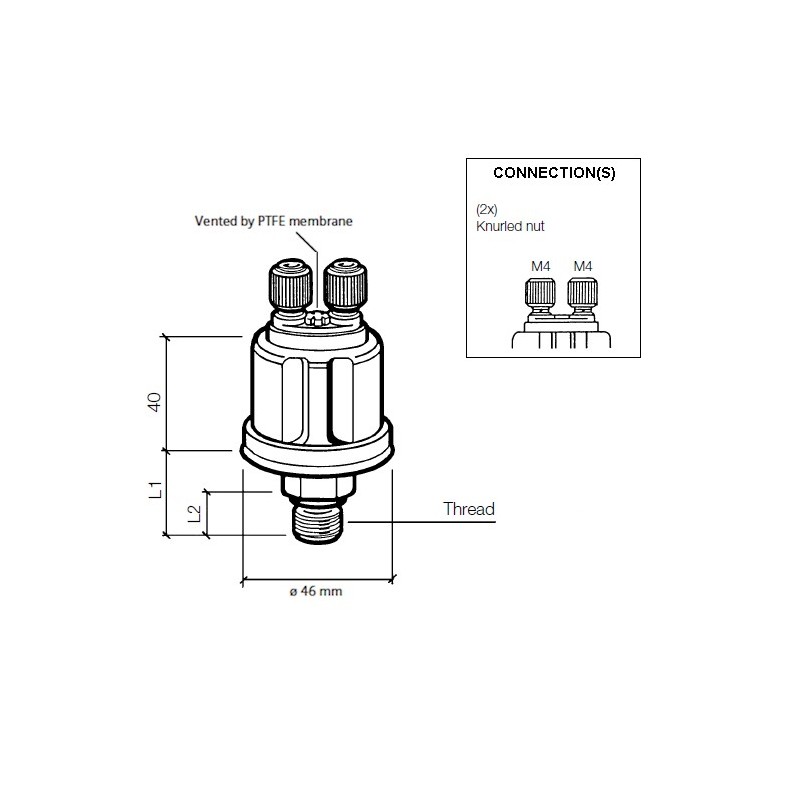

Pressure Measuring Range 0–10 bar (0–145 psi / 0–1000 kPa) Maximum Pressure 30 bar for 2 seconds Thread M10 x 1 male tapered short Length of Thread + Nut (L1) 19.5 mm Thread Length (L2) 11 mm Installation Torque 30 Nm Operating Temperature -25°C to +100°C Pressure Medium Oil, Fuel, Air Operating Voltage 6–24 V DC Resistor Range 10–184 Ohm Sensor Signal Dual-pole insulated return Warning Contact None Optional Warning Contact VDO A2C59510886 make contact switch Sender Connector M4 plastic knurled nut (2x)
Features
- Designed for dependable engine oil pressure monitoring in VDO instrumentation setups
- Accurate analog output (10–184 Ohm) suited to gauge-based pressure indication
- Dual-pole insulated return supports stable signal transmission in demanding environments
- M10 x 1 tapered short threaded fit for secure installation in compatible ports
-
