ID
1369869
$ 130.76
1-2 weeks delivery time
-
+

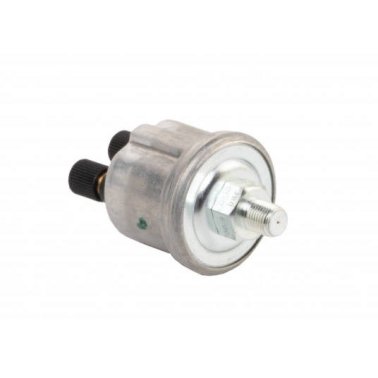

The VDO 360-081-032-002C pressure sensing sender provides stable, accurate 0–5 bar measurement for engine monitoring, including engine oil pressure, using a 10–184 ohm analog signal. Designed with an insulated return and a retractable, insulated construction, it supports dependable readings in demanding operating conditions, while the M10 x 1 tapered short thread helps ensure a secure installation across a wide range of automotive and monitoring-system uses.
- Description
- Ask a Question
-
0–5 Bar Oil Pressure Sender With Insulated Return and M10x1 Thread
Built for dependable engine monitoring, the VDO 360-081-032-002C is a pressure sender covering a 0–5 bar measuring range. It is well-suited to applications such as engine oil pressure measurement and other pressure-monitoring duties using oil, fuel, or air as the pressure medium. An insulated return (dual-pole) signal design supports clean, stable readings for compatible gauges and monitoring systems.
Compatibility
- VDO engine monitoring applications
- Automotive pressure monitoring systems using oil
- Automotive pressure monitoring systems using fuel
- Automotive pressure monitoring systems using air
Technical Specifications

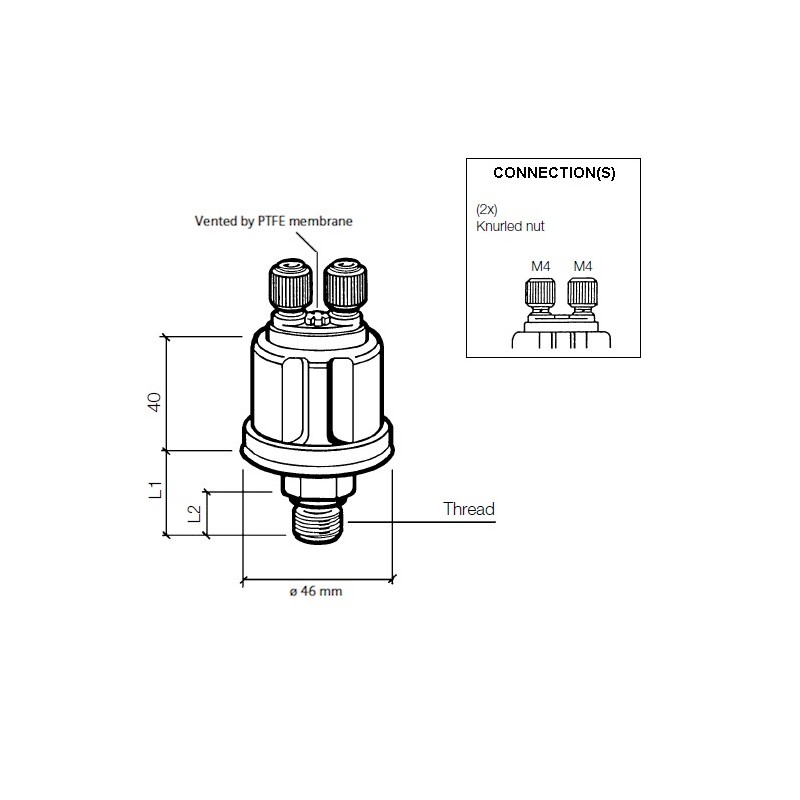

Pressure Measuring Range 0–5 bar (0–72.5 psi / 0–500 kPa) Maximum Pressure 30 bar for 2 seconds Thread M10 x 1, tapered short (male) Length of Thread + Nut (L1) 19.5 mm Thread Length (L2) 11 mm Tightening Torque 30 Nm Operating Temperature -25 °C to +100 °C Pressure Medium Oil, fuel, air Operating Voltage 6–24 V DC Signal Output 10–184 ohm (analog) Sensor Signal Dual-pole insulated return Warning Contact None Optional Warning Contact VDO A2C59510886 make-point switch Pressure Sender Connector M4 plastic knurled nut (2x) Type of Connection A EAN Code 4103590691132 HS Code 90269000 Weight 0.12 kg
Product Details
- Brand: VDO
- Part Number: 360-081-032-002C
- Component Type: Pressure sender
- Functionality: Engine oil pressure
- Design Notes: Insulated return; insulated and retractable design
Features
- Accurately measures pressure from 0 to 5 bar for consistent monitoring
- Analog 10–184 ohm output supports common VDO gauge and monitoring setups
- Dual-pole insulated return helps maintain reliable signal behavior in challenging conditions
- M10 x 1 tapered short thread enables straightforward fitment and secure seating
- Handles brief pressure spikes up to 30 bar (2 seconds) for added operating robustness
-
