ID
1177346
$ 151.94
1-2 weeks delivery time
-
+
The VDO 360-081-030-157C pressure sender is a robust analog sensing unit for accurate monitoring of oil, fuel, or air pressure in automotive, industrial, and marine engine systems. Measuring 0 to 5 bar and providing a 10–184 ohm output on a single-pole common-ground signal, it supports reliable gauge and engine monitoring operation, while the integrated warning contact (0.50 bar ± 0.15 bar, closes with falling pressure) helps trigger early alerts for pressure drops. Built for 6–24 V DC systems with an M18 x 1.5 thread and an operating temperature range of -25°C to +100°C, it is a dependable fit for VDO engine monitoring installations.
- Description
- Ask a Question
-
VDO Oil, Fuel, and Air Pressure Sender 0-5 Bar (M18 x 1.5)
Built for dependable engine monitoring, the VDO 360-081-030-157C is an analog pressure sender designed to measure oil, fuel, or air pressure across a 0–5 bar range. In addition to its variable resistance output for instrumentation, it includes a low-pressure warning contact that closes as pressure falls, helping protect engines by enabling timely alerts.
Compatibility
- VDO engine monitoring systems
- Automotive applications (engine oil, fuel, and air pressure monitoring)
- Industrial applications (oil, fuel, and air pressure monitoring)
- Marine applications (oil, fuel, and air pressure monitoring)
Product Details
- Brand: VDO
- Part Number: 360-081-030-157C
- Component Type: Pressure Sender
- Pressure Media: Oil, fuel, air
- Signal Type: Analog, single-pole common ground
- Warning Function: Low-pressure switch closes with falling pressure
Features
- Measures pressure from 0 to 5 bar for stable, repeatable engine monitoring
- Integrated warning contact supports early detection of pressure loss
- M18 x 1.5 threaded mounting for a secure installation
- Designed for 6–24 V DC systems used across automotive, industrial, and marine equipment
- Durable operating capability across -25°C to +100°C
Technical Specifications

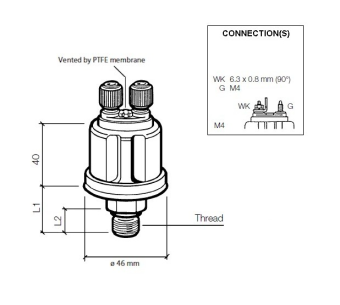

Pressure Measuring Range 0–5 bar (0–72.5 PSI / 0–500 kPa) Maximum Pressure 30 bar (2 seconds) Warning Contact Setpoint 0.50 bar ± 0.15 bar Warning Contact Behavior Closes with falling pressure Warning Contact Switching Capacity Maximum 5 W (non-inductive) Thread M18 x 1.5 (male) Torque 100 Nm Length (Thread + Nut) 20.5 mm Thread Length 12 mm Operating Temperature -25°C to +100°C Operating Voltage 6–24 V DC Signal Output (Resistance Range) 10–184 ohm Sensor Signal Single-pole common ground Pressure Sender Connector M4 AMP male 4.8 x 0.8 mm (90°) Warning Contact Connector M4 AMP male 6.3 x 0.8 mm (50°) Type of Connection F Predecessor 360081030064C Alternative Notation 360 081 030 157C; 360/81/30/157C Country of Origin Germany EAN Code 4103590691118 HS Code 90269000 Weight 0.15 kg Materials High-quality materials for durability -
