ID
1177142
$ 149.13
1-2 weeks delivery time
-
+
The VDO 360-081-030-107C pressure sending unit provides accurate 0–10 bar pressure feedback for automotive oil, fuel, or air systems, supporting dependable gauge and control-unit monitoring. Built with an M16 x 1.5 threaded mounting for secure installation, it outputs an analog 10–184 ohm signal on a 1-pole common ground and adds a 5.50 bar warning contact (± 0.30 bar) that closes as pressure falls to help trigger early low-pressure alerts. With a 6–24 V DC operating range and -25°C to +100°C operating temperature capability, it is well-suited for demanding engine and vehicle monitoring environments.
- Description
- Ask a Question
-

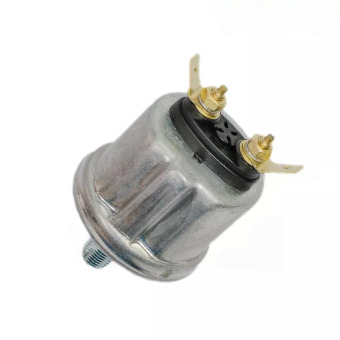

VDO Pressure Sending Unit 0–10 Bar with M16 x 1.5 Thread
The VDO 360-081-030-107C is an electric pressure sender designed for automotive monitoring where stable, repeatable readings are essential for protecting engines and systems. Suitable for oil, fuel, or air pressure measurement, it provides an analog 10–184 ohm output for instrumentation or control systems and includes a dedicated low-pressure warning contact that closes as pressure drops.
Compatibility
- Automotive oil pressure monitoring systems
- Automotive fuel pressure monitoring systems
- Automotive air pressure monitoring systems
- VDO engine monitoring installations
Technical Specifications
Pressure Range 0–10 bar (0–145 PSI, 0–1000 kPa) Maximum Pressure 30 bar during 2 seconds Thread M16 x 1.5 (male) Thread Length (L2) 12 mm Length Thread + Nut (L1) 20.5 mm Tightening Torque 100 Nm Operating Temperature -25°C to +100°C Operating Voltage 6–24 V DC Signal Output 10–184 ohm (analog) Sensor Signal Single-pole common ground Warning Contact Setpoint 5.50 bar ± 0.30 bar Warning Contact Function Closes with falling pressure Warning Contact Switching Capacity Maximum 5 W, non-inductive Pressure Sender Connector M4 AMP male 4.8 x 0.8 mm, 50° Warning Contact Connector M4 AMP male 6.3 x 0.8 mm, 50° HS Code 90269000 EAN 4103590691064 Weight 0.14 kg Country of Origin Germany
Product Details
- Brand: VDO
- Part Number: 360-081-030-107C
- Component Type: Pressure sender with warning contact
- Monitoring Use: Oil, fuel, or air pressure measurement for vehicle instrumentation and control systems
- Connector Style: AMP male terminals (including flat tab connector format)
Features
- Accurate 0–10 bar measurement range to support stable pressure monitoring under real driving conditions
- Integrated low-pressure warning contact helps provide early notification when pressure drops toward critical levels
- Analog resistance output (10–184 ohm) designed for consistent readings on compatible gauges and monitoring electronics
- M16 x 1.5 threaded installation supports secure mounting in automotive pressure ports
- Designed to operate across a wide temperature span for dependable performance in demanding engine bays
-
