ID
1369868
$ 161.08
1-2 weeks delivery time
-
+

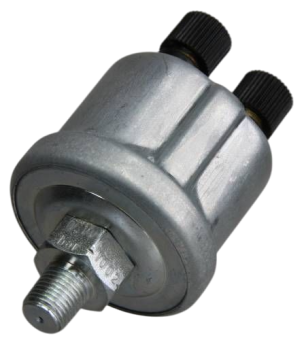

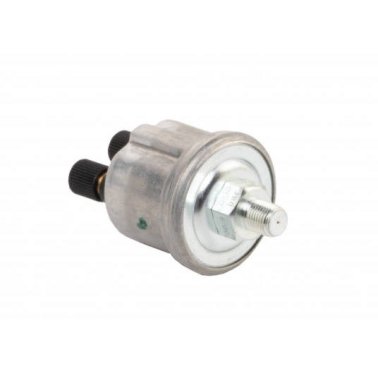

The VDO 360-081-032-001C pressure sender is a precision monitoring sensor for 0–5 bar systems, delivering a stable 10–184 ohm analog signal for engine monitoring across oil, fuel, and air circuits. Built with a 1/8-27 NPTF male thread, dual-pole insulated return, and 6–24 V DC compatibility, it supports reliable readings in automotive, marine, and industrial installations, with defined mounting torque guidance and robust short-duration overpressure capability.
- Description
- Ask a Question
-
VDO Pressure Sender for 0–5 Bar Monitoring with 1/8-27 NPTF Connection
The VDO 360-081-032-001C pressure sender is designed for accurate pressure monitoring in oil, fuel, and air systems. As part of an engine monitoring setup, it converts system pressure into a consistent 10–184 ohm analog output, supporting dependable gauge indication and stable electrical performance thanks to its dual-pole insulated return design.
Compatibility
- Automotive applications
- Marine applications
- Industrial applications
Technical Specifications

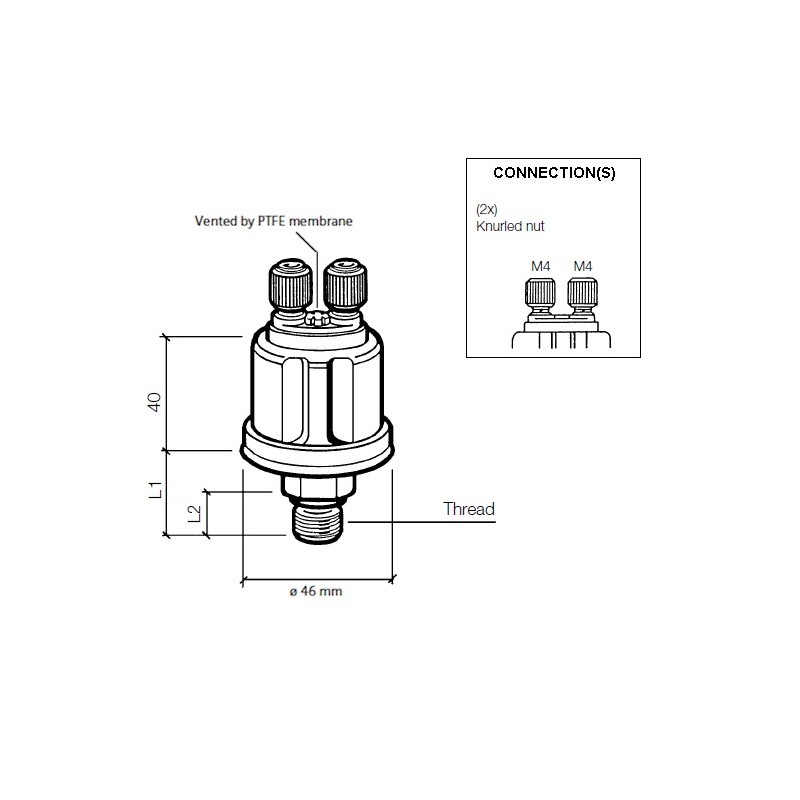

Pressure Measuring Range 0–5 bar (0–72.5 PSI, 0–500 kPa) Maximum Pressure 30 bar (2 seconds) Operating Temperature Range -25°C to +100°C Thread 1/8-27 NPTF male Total Length Thread + Nut (L1) 19.5 mm Thread Length (L2) 11 mm Recommended Mounting Torque 30 Nm Operating Voltage 6–24 V DC Signal Output 10–184 ohm (analog) Signal Type Dual-pole insulated return Connector M4 plastic knurled nut (2x) Warning Contact None (optional VDO A2C59510886 makepoint switch) Pressure Media Oil, fuel, air EAN Code 4103590691125 HS Code 90269000 Weight 0.12 kg NATO Part Number 6620-01-275-9775 Type of Connection A
Product Details
- Brand: VDO
- Part Number: 360-081-032-001C
- Component Type: Pressure sender
- Typical Use: Engine monitoring (engine oil pressure and other pressure circuits using oil, fuel, or air)
- Alternative Notation: 360 081 032 001C; 360/81/32/1C
- Country of Origin: Germany
Features
- Measures system pressure across the 0–5 bar range for clear, repeatable monitoring.
- Analog resistive output (10–184 ohm) suited to common VDO gauge and monitoring setups.
- Dual-pole insulated return supports stable signal behavior in demanding electrical environments.
- Designed for versatile use across oil, fuel, and air pressure circuits in automotive, marine, and industrial systems.
- Defined installation interface with 1/8-27 NPTF thread and specified torque guidance for secure mounting.
-
