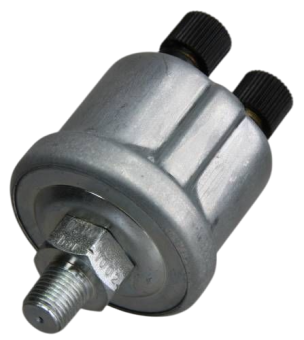

VDO 360-081-030-119C - Pressure Sender 0-5 Bar - 1/8-27 NPTF

SKU: EX 360081030119C

€ 88,92

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The VDO 360-081-030-119C Pressure Sender is a precision sensor designed for monitoring pressures from 0 to 5 Bar (0 - 72.5 PSI, 0 - 500 KPa) with high accuracy. Featuring a 1/8 - 27 NPTF thread and a resistance range of 10 - 184 Ohm, it ensures reliable signal output for oil, fuel, and air systems. Equipped with a built-in warning contact set at 1.40 Bar ± 0.30 Bar and a switching capacity of up to 5 Watts, it enhances safety in critical applications. Designed to withstand up to 30 Bar for short durations and operate in temperatures from -25°C to +100°C, this sender is built for durability and performance. Its compact design, 19.5 mm total thread length, and 30 Nm torque specification make it easy to integrate into automotive, marine, and industrial systems. Supporting 6 - 24 V DC operation, this robust pressure sender delivers dependable and efficient performance in demanding environments.

Description
Ask a Question

VDO 360-081-030-119C - Pressure Sender 0-5 Bar - 1/8-27 NPTF

Key Features:
- Pressure range: 0 to 5 Bar (0 - 72.5 PSI, 0 - 500 KPa) for accurate pressure monitoring
- Thread: 1/8 - 27 NPTF for secure and reliable installation
- Sender resistance range: 10 - 184 Ohm for precise signal output
- Single-pole common ground sensor signal for stable electrical performance
- Built-in warning contact: 1.40 Bar ± 0.30 Bar for enhanced safety
- Warning contact switching capacity: Maximum 5 Watt (non-inductive)
- Maximum pressure: 30 Bar for up to 2 seconds, ensuring durability in high-pressure conditions
- Operating temperature: -25°C to +100°C for reliable performance in extreme environments
- Compatible with oil, fuel, and air pressure systems
- Thread length (L2): 11 mm; total thread and nut length (L1): 19.5 mm
- Torque specification: 30 Nm for proper and secure mounting
- Connectors: M4 AMP Male 6.3 x 0.8 mm (90°) for both the pressure sender and warning contact
Specifications:
- Pressure Measuring Range: 0 to 5 Bar (0 - 72.5 PSI, 0 - 500 KPa)
- Maximum Pressure: 30 Bar (2 seconds)
- Thread: 1/8 - 27 NPTF
- Total Length Thread + Nut (L1): 19.5 mm
- Thread Length (L2): 11 mm
- Torque: 30 Nm
- Operating Temperature Range: -25°C to +100°C
- Resistor Range: 10 - 184 Ohm
- Signal Type: Single-pole common ground
- Operating Voltage: 6 - 24 V DC
- Warning Contact: 1.40 Bar ± 0.30 Bar
- Warning Contact Switching Capacity: Maximum 5 Watt (non-inductive)
- Warning Contact Features: Closes with falling pressure
- Connectors: M4 AMP Male 6.3 x 0.8 mm (90°) for both pressure sender and warning contact
- Compatible Mediums: Oil, fuel, air
Compatibility and Application:
- Designed for precise pressure monitoring in oil, fuel, and air systems
- Compatible with automotive, marine, and industrial applications
- Ideal for engines, transmissions, and hydraulic systems requiring accurate pressure readings
- Works seamlessly with systems operating on 6 - 24 V DC voltage
- Optimized for extreme pressure and temperature environments
Benefits:
- Accurate pressure monitoring with a range of 0 to 5 Bar
- Durable design capable of withstanding up to 30 Bar for short durations
- Built-in warning contact enhances safety with a 1.40 Bar ± 0.30 Bar trigger point
- Secure installation with 1/8 - 27 NPTF thread and 30 Nm torque
- Reliable signal transmission with a resistance range of 10 - 184 Ohm
- Compact and robust design ensures long-lasting performance
- Supports multiple pressure-sensitive mediums, offering versatile applications
