$ 128.25
1-2 weeks delivery time
-
+
The VDO 360-081-030-006C pressure sender is a robust engine-oil pressure sensing unit for VDO engine monitoring, delivering accurate readings across the 0 to 5 bar range. Designed with an M12 x 1.5 male thread and a single-pole common ground signal, it supports reliable gauge input while also providing a 0.60 bar ± 0.15 bar warning contact to help protect engines and equipment when pressure drops.
- Description
- Ask a Question
-
VDO Engine Oil Pressure Sender with Warning Contact
Built for dependable engine monitoring, the VDO 360-081-030-006C pressure sender measures oil pressure from 0 to 5 bar and outputs an analog resistance signal for accurate gauge indication and control. It also integrates a low-pressure warning contact that closes as pressure falls, supporting early warning and safer operation in demanding applications.
Compatibility
- VDO Engine Monitoring
Product Details
- Brand: VDO
- Part Number: 360-081-030-006C
- Component Type: Pressure sender
- Functionality: Engine oil pressure
- Pressure Medium: Oil
- Pressure Medium: Fuel
- Pressure Medium: Air
- Packaging: VDO sensor retail package
- Country of Origin: Germany
- Alternative Notation: 360 081 030 006C
- Alternative Notation: 360/81/30/6C
Features
- Accurate 0–5 bar pressure monitoring for stable gauge readings and system control
- Low-pressure warning contact supports rapid response when pressure drops

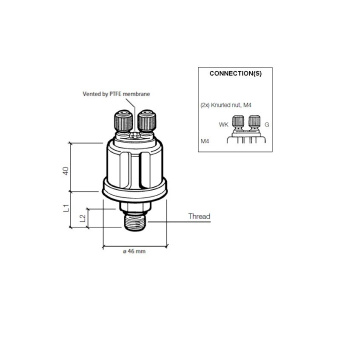

- M12 x 1.5 threaded mounting for secure installation
- Analog resistance output designed for VDO engine monitoring systems
Technical Specifications
Pressure Measuring Range 0 - 5 Bar; 0 - 72.5 PSI; 0 - 500 KPa Maximum Pressure 30 Bar during 2 seconds Thread M12 x 1.5 male Length Thread + Nut (L1) 20.5 mm Thread Length (L2) 12 mm Tightening Torque 40 Nm Operating Temperature -25 °C to +100 °C Operating Voltage 6 - 24 V DC Sender Resistance Range 10 - 184 Ohm Sensor Signal Single-pole common ground Warning Contact 0.60 Bar ± 0.15 Bar Warning Contact Switching Capacity Maximum 5 Watt non-inductive Warning Contact Behavior Closes with falling pressure Pressure Sender Connector M4 plastic knurled nut Warning Contact Connector M4 plastic knurled nut Type of Connection A HS Code 90269000 EAN Code 4103590949585 Weight 0.12 kg Catalog Reference VDO 2014 Vehicle Electronics Catalog, Page 123 - 125 -
