ID
1369867
$ 137.77
1-2 weeks delivery time
-
+

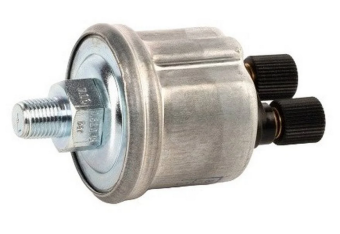

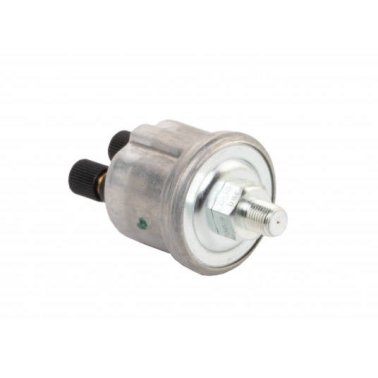

The VDO 360-081-030-015C oil pressure sending unit provides accurate 0–10 bar (0–145 psi) monitoring for engine oil pressure instrumentation across automotive and industrial systems. Built with a 1/8-27 NPTF male thread and a wide -25°C to +100°C operating range, it delivers an analogue 10–184 ohm signal on a single-pole common ground and adds protection via an integrated warning contact set at 0.80 bar ± 0.30 bar to alert on low pressure conditions.
- Description
- Ask a Question
-
Oil Pressure Sending Unit 0–10 Bar with Warning Contact
The VDO 360-081-030-015C is a pressure sender designed for dependable engine oil pressure monitoring in automotive and industrial engine monitoring systems. Installed into the engine’s pressure port via its 1/8-27 NPTF male thread, it converts pressure into a stable analogue signal for the gauge or monitoring electronics, and it also includes a dedicated low-pressure warning contact to help protect the engine when pressure drops.
Compatibility
- Engine oil pressure monitoring systems
- Automotive applications (oil, fuel, and air pressure systems)
- Industrial applications (oil, fuel, and air pressure systems)
- VDO engine monitoring installations
Product Details
- Brand: VDO
- Part Number: 360-081-030-015C
- Component Type: Pressure Sender
- Typical Use: Engine oil pressure measurement with low-pressure warning output
- Pressure Media: Oil, fuel, air
Technical Specifications

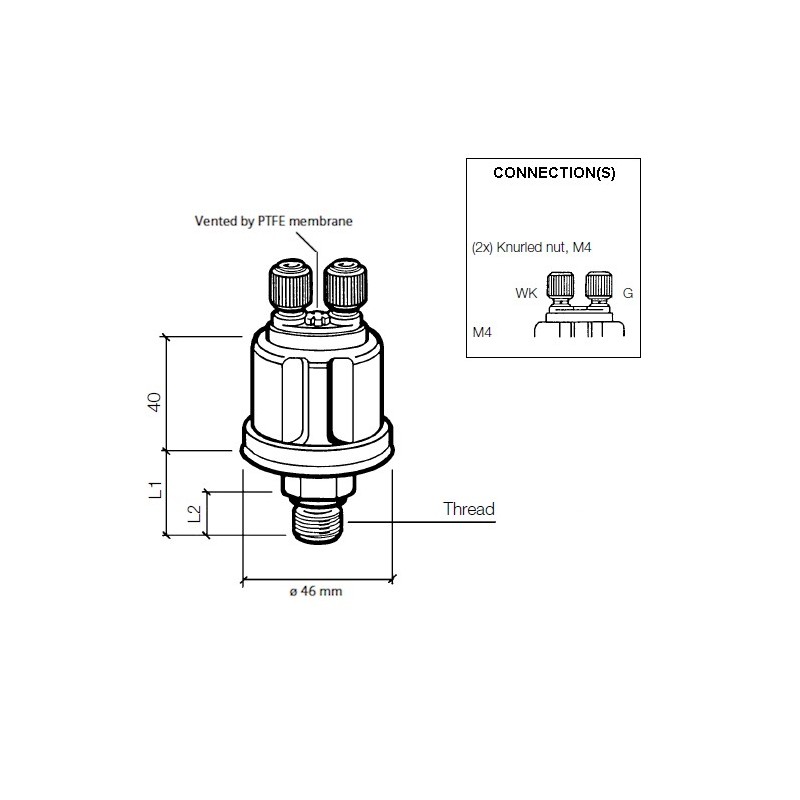

Pressure Measuring Range 0–10 bar (0–145 psi, 0–1000 kPa) Maximum Pressure 30 bar (up to 2 seconds) Thread 1/8-27 NPTF male Operating Temperature -25°C to +100°C Operating Voltage 6–24 V DC Signal Output Analogue, 10–184 ohm Sensor Signal Single-pole common ground Warning Contact Set Point 0.80 bar ± 0.30 bar Warning Contact Function Closes with falling pressure Warning Contact Switching Capacity Maximum 5 W, non-inductive Connector M4 plastic knurled nut Thread Length 11 mm Length with Nut 19.5 mm Installation Torque 30 Nm EAN 4103590690869 HS Code 90269000 Weight 0.12 kg Country of Origin Germany
Features
- Accurate 0–10 bar pressure measurement for confident engine oil pressure supervision
- Integrated low-pressure warning contact supports fast driver or system response
- Analogue resistive output (10–184 ohm) suited to classic and modern monitoring setups
- Designed for demanding environments with -25°C to +100°C operating capability
- Secure fitment via 1/8-27 NPTF thread and defined 30 Nm installation torque
- Suitable for oil, fuel, and air pressure circuits where compatible
-
