ID
1369865
$ 151.99
1-2 weeks delivery time
-
+
The VDO 360-081-030-002K pressure sender is a 0–5 bar engine monitoring component designed to deliver precise pressure readings for oil, fuel, or air systems while supporting dependable dashboard indication. Built with an M10 x 1 male tapered short thread and supplied with a 0.5-meter cable, it installs cleanly and provides an analog 10–184 ohm signal with a single-pole common ground, plus an integrated warning contact that closes as pressure falls for added protection.
- Description
- Ask a Question
-
0-5 Bar M10 x 1 Pressure Sender with Warning Contact
The VDO 360-081-030-002K is a pressure sender for vehicle engine monitoring, engineered to measure pressure from 0 to 5 bar and feed an analog signal to compatible instrumentation. With its M10 x 1 male tapered short thread, single-pole common ground output, and built-in warning contact, it supports accurate indication and fast low-pressure alerting in demanding automotive environments.
Compatibility
- Automotive engine monitoring applications using an analog 10–184 ohm sender signal
- Systems requiring single-pole common ground pressure sensor signal
- Installations with M10 x 1 male tapered short threaded ports
- Media: oil
- Media: fuel
- Media: air
- Electrical systems operating on 6–24 V DC
Product Details
- Brand: VDO
- Part Number: 360-081-030-002K
- Component Type: Pressure Sender
- Functionality: Engine oil pressure
- Design: Water-coolant design
- Cable Length: 0.5 meter
- Country of Origin: Germany
- EAN Code: 4103590300157
- HS Code: 90269000
- Weight: 0.13 kg
- Alternative Notation: 360 081 030 002K; 360/81/30/2K
Features
- Accurate 0–5 bar measurement for consistent pressure monitoring
- Integrated warning contact for low-pressure alerting (closes with falling pressure)
- Analog output suited to VDO-style instrumentation and engine monitoring setups
- Robust electrical connections via M4 plastic knurled nut connectors
- Secure installation using the specified thread form and tightening torque
Technical Specifications

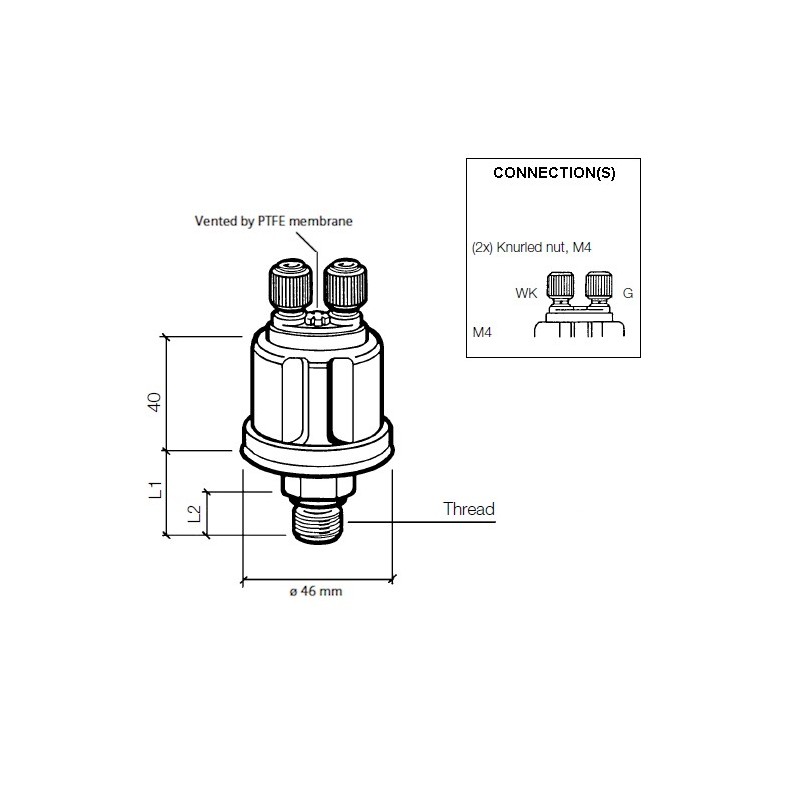

Pressure Measuring Range 0 - 5 Bar (0 - 72.5 PSI; 0 - 500 KPa) Maximum Pressure 30 Bar for 2 seconds Thread M10 x 1 tapered short Length Thread + Nut (L1) 19.5 mm Thread Length (L2) 11 mm Torque 30 Nm Operating Temperature -25 °C to +100 °C Pressure Medium Oil; Fuel; Air Operating Voltage 6 - 24 V DC Resistor Range 10 - 184 Ohm Pressure Sensor Signal Single-pole common ground Warning Contact 0.50 Bar ± 0.15 Bar Warning Contact Switching Capacity Maximum 5 Watt non-inductive Warning Contact Feature Closes with falling pressure Pressure Sender Connector M4 plastic knurled nut Warning Contact Connector M4 plastic knurled nut Type of Connection A -
