ID
1369866
$ 135.77
1-2 weeks delivery time
-
+

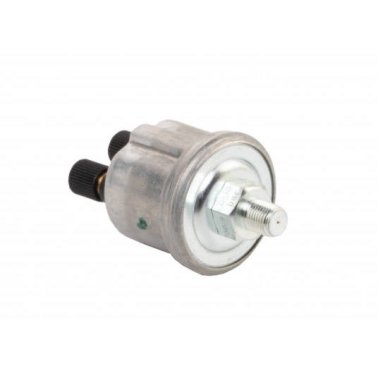

The VDO 360-081-030-009C pressure-sensing sender is an engine monitoring component that measures oil pressure from 0 to 10 bar and provides a dependable analog signal for gauges and warning circuits. Built in the WC7 model with an M10 x 1 tapered short thread, it supports accurate pressure feedback across automotive, industrial, and marine installations, with an integrated warning contact that closes as pressure falls for added protection.
- Description
- Ask a Question
-
Engine Oil Pressure Sender 0-10 Bar with M10 x 1 Thread
Designed for dependable engine monitoring, the VDO 360-081-030-009C pressure sender measures engine oil pressure across a broad 0–10 bar range and outputs an analog resistance signal suited to VDO-style instrumentation. It also includes a built-in warning contact that closes with falling pressure, helping you trigger an alarm or warning lamp when pressure drops.
Compatibility
- Automotive applications
- Industrial applications
- Marine applications
Technical Specifications

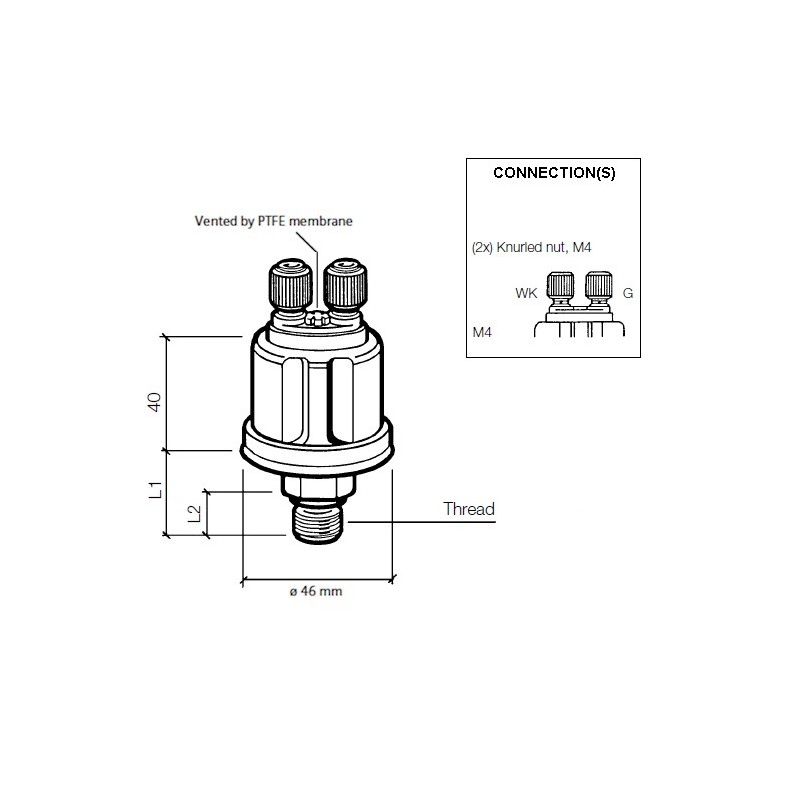

Part Number 360-081-030-009C Model WC7 Pressure Measuring Range 0 - 10 Bar (0 - 145 PSI, 0 - 1000 KPa) Maximum Pressure 30 Bar during 2 seconds Thread M10 x 1 male tapered short Length Thread + Nut (L1) 19.5 mm Thread Length (L2) 11 mm Tightening Torque 30 Nm Operating Temperature -25 °C to +100 °C Pressure Medium Oil, Fuel, Air Operating Voltage 6 - 24 V DC Resistance Output Range 10 - 184 Ohm Sensor Signal Single-pole common ground Warning Contact Set Point 0.50 Bar ± 0.15 Bar Warning Contact Switching Capacity Maximum 5 Watt non-inductive Warning Contact Behavior Closes with falling pressure Pressure Sender Connector M4 plastic knurled nut Warning Contact Connector M4 plastic knurled nut Effective Date 30/9 EAN Code 4103590690845 HS Code 90269000 Weight 0.12 kg Country of Origin Germany Alternative Notation 360 081 030 009C; 360/81/30/9C
Product Details
- Brand: VDO
- Component Type: Pressure sender
- Function: Engine oil pressure measurement
- System Use: VDO engine monitoring
Features
- Wide 0–10 bar measuring range for versatile monitoring setups
- M10 x 1 tapered short thread for secure installation
- Analog 10–184 ohm output for gauge integration
- Integrated low-pressure warning contact for added engine protection
- Suitable for oil, fuel, and air pressure measurement in demanding automotive, industrial, and marine environments
-
