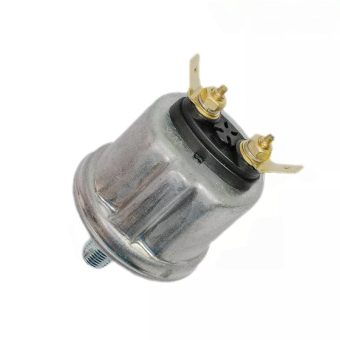

The VDO 360-081-030-004C pressure sensing sender provides stable, accurate monitoring across a 0 to 5 bar range for engine oil, fuel, and air pressure circuits in automotive and industrial engine monitoring systems. Built with an M10 x 1 tapered short male thread for a secure installation, it outputs a 10–184 ohm analog signal (single-pole common ground) and includes a 0.70 bar warning contact that closes as pressure falls to help protect engines and equipment from harmful low-pressure events.
- Description
- Ask a Question
-
0-5 Bar Analog Pressure Sender With Low-Pressure Warning Contact
The VDO 360-081-030-004C is a high-precision pressure sender designed for dependable pressure feedback in engine monitoring systems. Suitable for oil, fuel, and air pressure measurement, it delivers an analog resistance signal for instrumentation while also providing a dedicated low-pressure warning contact that closes with falling pressure to support safe operation.
Compatibility
- VDO engine monitoring systems
- Automotive engine oil pressure monitoring
- Automotive fuel pressure monitoring
- Automotive air pressure monitoring
- Industrial pressure monitoring applications (oil, fuel, air)
- Commercial-vehicle engine monitoring applications
Product Details
- Brand: VDO
- Part Number: 360-081-030-004C
- Component Type: Pressure Sender
- Functionality: Engine oil pressure (also suitable for fuel and air pressure media)
- Thread Connection: M10 x 1 male tapered short
- Electrical Connection: M4 plastic knurled nut
- Packaging: VDO sensor retail package
Features
- Accurate 0–5 bar pressure measurement for reliable instrumentation
- 0.70 bar warning contact helps alert to potentially damaging pressure drops
- Analog resistance output designed for consistent gauge readability and stable monitoring
- M10 x 1 tapered thread supports secure fitment in compatible ports
- Built for demanding environments with a wide operating temperature range
Technical Specifications
Pressure Measuring Range 0–5 bar (0–72.5 PSI, 0–500 kPa) Maximum Pressure 30 bar (for 2 seconds) Operating Temperature -25°C to +100°C Pressure Medium Oil, fuel, air Thread M10 x 1 tapered short Length Thread + Nut (L1) 19.5 mm Thread Length (L2) 11 mm Installation Torque 30 Nm Operating Voltage 6–24 V DC Resistance Range 10–184 ohm Signal Single-pole common ground Warning Contact Set Point 0.70 bar ± 0.15 bar Warning Contact Behavior Closes with falling pressure Warning Contact Switching Capacity Maximum 5 W (non-inductive) Connector M4 plastic knurled nut Type of Connection A EAN Code 4103590690821 HS Code 90269000 Weight 0.12 kg Country of Origin Germany Alternative Notation 360 081 030 004C; 360/81/30/4C -
