ID
1128245
$ 177.98
1-2 weeks delivery time
-
+
The VDO 360-081-030-001C pressure-sender unit provides stable 0–5 bar pressure measurement for engine monitoring in oil, fuel, and air circuits, converting pressure into a 10–184 ohm signal for compatible instruments. Built with an M10 x 1 tapered thread for secure installation, it operates on 6–24 V DC and adds extra protection via an integrated warning contact that switches at 0.25 bar ± 0.15 bar to help alert the operator during low-pressure conditions.
- Description
- Ask a Question
-
0–5 Bar Engine Monitoring Pressure Sender With Warning Contact
The VDO 360-081-030-001C is a versatile pressure sender for dependable monitoring in oil, fuel, and air systems. Designed for 6–24 V DC instrumentation, it converts measured pressure into a 10–184 ohm analog signal and includes an integrated low-pressure warning contact that closes with falling pressure, supporting both continuous indication and a clear alert threshold.
Compatibility
- Oil pressure monitoring systems
- Fuel pressure monitoring systems
- Air pressure monitoring systems
- VDO engine monitoring applications (6–24 V DC)
Product Details
- Brand: VDO
- Part Number: 360-081-030-001C
- Component Type: Pressure Sender
- Signal Type: Single-pole, common ground
- Connectors: M4 plastic knurled nut (sender and warning contact)
- Country of Origin: Germany
- EAN Code: 4103590949561
- HS Code: 90269000
- Weight: 0.12 kg
- Alternative Notation: 360 081 030 001C; 360/81/30/1C
Technical Specifications

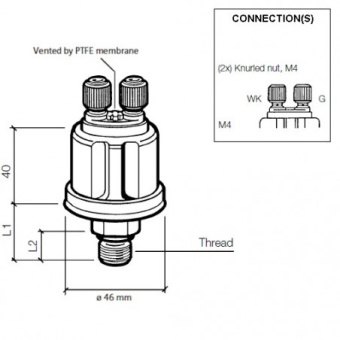

Pressure Measuring Range 0–5 bar (0–72.5 psi; 0–500 kPa) Maximum Pressure 30 bar (for 2 seconds) Operating Temperature -25 °C to +100 °C Pressure Media Oil; fuel; air Thread M10 x 1, tapered short Thread + Nut Length (L1) 19.5 mm Thread Length (L2) 11 mm Installation Torque 30 Nm Operating Voltage 6–24 V DC Resistance Range 10–184 ohm Warning Contact Activation 0.25 bar ± 0.15 bar Warning Contact Switching Capacity Maximum 5 W (non-inductive) Warning Contact Behavior Closes with falling pressure Connection Type A
Features
- Measures 0–5 bar for clear, readable pressure indication in demanding operating conditions
- Integrated low-pressure warning contact for an added safety signal at the set threshold
- Analog 10–184 ohm output designed for compatible VDO instruments
- M10 x 1 tapered thread supports a secure fit in common sender ports
- Built for multi-media use across oil, fuel, and air applications
Reference Information
- VDO 2014 Vehicle Electronics Catalog: pages 123–125
- VDO Pressure Sender Tables: datasheet table 3
-
