ID
1369908
$ 254.24
1-2 weeks delivery time
-
+
The VDO 340-804-030-005B inductive tachometer and speed sender is a robust M18 threaded pickup designed for engine monitoring and instrument systems that rely on precise pulse signals. Built around inductive sensing with a 0–250 Hz measurement range, it provides stable tachometer and speedometer input, using a 2-pole insulated-return signal and an AMP 2-pole connector for dependable integration in automotive monitoring installations.
- Description
- Ask a Question
-
Inductive Speed and Tachometer Sender with M18 x 1.5 Thread
The VDO 340-804-030-005B is an inductive speed and tachometer sender designed to generate a reliable pulse signal for vehicle instrumentation and VDO engine monitoring. With an M18 x 1.5 male thread and a compact 25 mm sensor length, it supports accurate speedometer and tachometer readings where consistent signal quality and rugged construction matter.
Compatibility
- VDO Engine Monitoring Systems
- Speedometer Systems
- Tachometer Systems
Technical Specifications

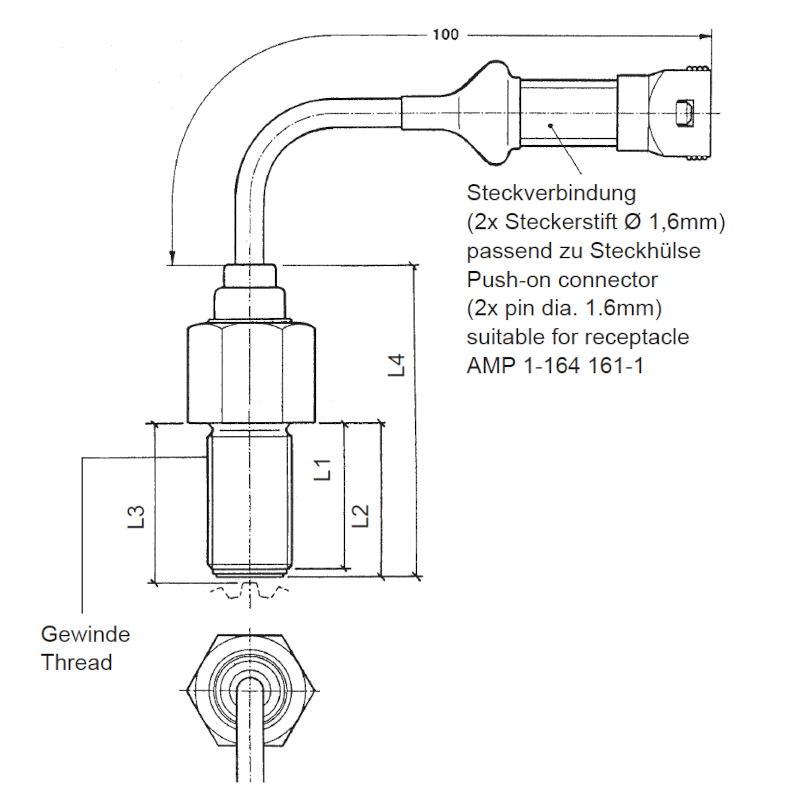

Part Number 340-804-030-005B Sender Type Inductive Measurement Range 0–250 Hz Frequency 250 Hz (15,000 pulses per minute) Thread M18 x 1.5 male Signal Output Insulated return Sensor Signal 2-pole insulated return Connector AMP 2-pole, pin diameter 1.6 mm (1-164 161-1) Internal Resistance 1,050 Ω ± 100 Ω Operating Temperature -25°C to +140°C Overall Length 67 mm Length L1 23.3 mm Length L2 25 mm Length L3 26.1 ± 0.1 mm Operating Voltage Independent Weight 0.11 kg EAN Code 41035906905 HS Code 90318080 Country of Origin Czech Republic Packaging VDO sensor retail package Alternative Notation 340 804 030 005B; 340/804/30/5B
Product Details
- Brand: VDO
- Component Type: Inductive tachometer and speed sender
- Installation: Threaded sensor mounting using M18 x 1.5 male thread
- System Role: Converts rotating or passing-tooth movement into a frequency signal used by speed and RPM instrumentation
Features
- Inductive sensing for dependable pulse generation in demanding vehicle environments
- 250 Hz capability supports accurate speedometer and tachometer readings
- 2-pole insulated-return signal helps maintain stable measurements and clean wiring integration
- AMP 2-pole connector interface for secure electrical connection
-
