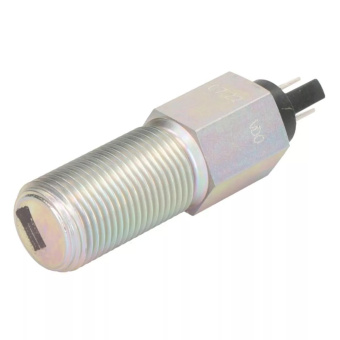

The VDO 340-804-007-011G inductive tachometer speed sender is a robust pulse-generating sensor for speed and RPM measurement in VDO engine monitoring and instrumentation setups across industrial and automotive applications. With an M18 x 1.5 male thread, insulated return signal output, and blade connector interface, it delivers stable 250 Hz operation (15,000 pulses per minute) across a wide -25°C to +140°C temperature range for dependable feedback to tachometer and speedometer systems.
- Description
- Ask a Question
-
M18 Inductive Speed and RPM Sender for Tachometer Systems
The VDO 340-804-007-011G is an inductive speed and RPM sender designed to generate a consistent pulse signal for tachometer and speedometer measurement. Built for VDO engine monitoring, it supports accurate rotational speed feedback in demanding industrial and automotive environments, using an insulated return signal output and a secure M18 x 1.5 male threaded mounting.
Compatibility
- VDO engine monitoring systems
- Industrial applications
- Automotive applications
Technical Specifications
Part Number 340-804-007-011G Sender Type Inductive Measurement Range 0 - 250 Hz Frequency 250 Hz (15,000 pulses per minute) Thread M18 x 1.5 Male Operating Temperature -25°C to +140°C Overall Sender Length (L4) 70 mm Sender Length (L1) 33 mm Sender Length (L2) 34 mm Sender Length (L3) 35.1 .1 mm Operating Voltage Independent Signal Output Insulated Return (2-pole) Connector Blade, 2 x 6.3 x 0.8 mm Internal Resistance 1,050 Ohm 100 Ohm EAN 4103590690487 HS Code 90318080 Weight 0.10 kg Country of Origin Czech Republic Alternative Notation 340 804 007 011G; 340/804/7/11G Replaces OEM Number CLAAS 06768350
Product Details
- Brand: VDO
- Component Type: Inductive tachometer and speed sender
- Typical System Location: Speed/RPM pickup point for instrumentation or monitoring systems
Features
- Produces a stable pulse signal for accurate speed and RPM indication
- Wide operating temperature range supports harsh under-hood and industrial environments
- Insulated return output helps maintain clean signal integrity in installed systems
- M18 x 1.5 threaded design enables secure mounting and consistent sensor positioning
-
