The VDO Cockpit International 350-040-005C gear oil pressure gauge is a compact 52 mm instrument for dependable transmission and gear oil pressure monitoring on 24V vehicle systems. Covering 0–25 bar with an analog 10–184 ohm sender signal, it helps drivers and technicians spot pressure changes quickly, while AMP male blade connectors simplify wiring for the sensor signal and illumination. Built for demanding engine monitoring environments, it adds clear, professional-grade pressure indication to dashboards with a 52 mm panel cutout.
- Description
- Ask a Question
-

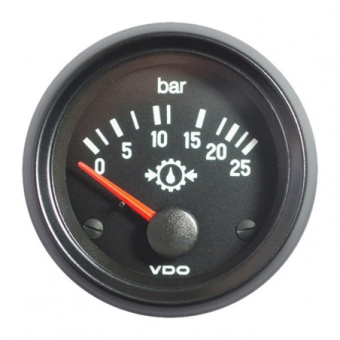

VDO Cockpit International 52 mm Gear Oil Pressure Gauge 0–25 Bar
The VDO 350-040-005C is a Cockpit International series gear oil pressure gauge engineered for 24V vehicle dashboards. Designed for transmission and gear oil pressure monitoring, it reads 0–25 bar and uses an analog sender signal (10–184 ohm) via a VDO pressure sender, giving the operator a clear, continuous view of lubrication pressure during operation.
Compatibility
- 24V vehicle electrical systems (21.5–30 V DC)
- Dashboards with 52 mm (2 1/16 inch) panel hole diameter
- Installations using a VDO pressure sender signal of 10–184 ohm
Technical Specifications
Part Number 350-040-005C Series Cockpit International Function Gear oil pressure Measurement Range 0–25 bar Signal Type Analog Sender Signal Range 10–184 ohm (VDO pressure sender) Operating Voltage 21.5–30 V DC Current Consumption (Without Illumination) 82 mA Reverse Polarity Protection Yes Installation Hole Diameter 52 mm (2 1/16 inch) Outside Diameter 59.25 mm (2 1/3 inch) Installation Depth 67.5 mm Bracket Locking Height 0.5–8 mm Connection (Sensor Signal) AMP male blade connector 6.3 x 0.8 mm (3x) Illumination Connection AMP male blade connector 6.3 x 0.8 mm (2x) Dial Color Black Pointer Red backlight Dial Illumination Floodlight 24V, 2 W, white/green/red Deflection Angle 90° Warning Indication None Lens Single anti-glare Bezel Triangular black (threaded ring) Bezel Interchangeable Yes (special tool required) Front Protection Class IP64 (DIN 40050), ozone proof, UV proof Rear Protection Class IP42 (DIN 40050) Operating Temperature -30°C to +85°C EMC According to EN 13309 and ISO 13766 Mechanical Shock (8 Hours) Max 1G, 25 Hz to 2000 Hz Nominal Position NL 0 to NL 90 (DIN 16257) Housing Plastic, flame retardant Country of Origin Malaysia EAN Code 4103590690647 HS Code 85122000 Weight 1.20 kg Packaging OEM bulk (10 pieces)
Product Details
- Brand: VDO
- Category: Pressure gauges
- Application: VDO engine monitoring
- Mounting Style: Panel mount, 52 mm cutout
Features
- Clear 0–25 bar scale supports quick checks of transmission and gear oil system health
- Analog input matched to VDO 10–184 ohm pressure sender systems
- 24V illumination and 24V operating range suited for commercial and heavy-duty vehicle dashboards
- Robust protection ratings (IP64 front, IP42 rear) for demanding operator environments
- OEM bulk pack includes 10 gauges; steel bracket (zinc-plated and chromatized) listed in the package contents
-
