The VDO Cockpit International 52 mm engine hours counter (331-810-012-004G) accurately records engine run time from 0 to 99999.9 hours to support maintenance scheduling and reliable service intervals. Built for 12V DC systems with a black triangular bezel and white illuminated digits, it stays easy to read day or night thanks to floodlight illumination in white, green, or red, and it’s well-suited to automotive, marine, and industrial engine monitoring panels with robust IP64 front protection and ignition-switch positive signal input.
- Description
- Ask a Question
-

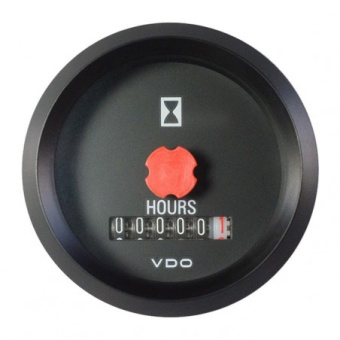

Cockpit International 52 mm Engine Hours Counter with Floodlight Illumination
The VDO 331-810-012-004G is a Cockpit International engine hours counter designed to track engine operating time for maintenance intervals and dependable fleet or vessel upkeep. As part of an engine monitoring instrument setup, it counts run time via an ignition-switch positive input and presents clear, high-contrast digits with floodlight illumination for confident readability in low-light conditions.
Compatibility
- Automotive 12V DC systems requiring engine hour tracking
- Marine 12V DC systems requiring engine hour tracking
- Industrial 12V DC systems requiring engine hour tracking
- VDO engine monitoring systems
- Vehicles requiring engine hour data for service intervals
- Boats requiring engine hour data for service intervals
- Machinery requiring engine hour data for service intervals
Product Details
- Brand: VDO
- Series: Cockpit International
- Component Type: Engine Hours Counter
- Color: Black
- Signal Input: Ignition switch positive
- Front Protection Rating: IP64
- Rear Protection Rating: IP42
Features
- Supports accurate maintenance planning by recording true engine operating hours
- White illuminated digits with floodlight illumination options for night operation
- Rugged front sealing for use in dust- and splash-prone environments
- Secure electrical connection via AMP male blade connectors
- Interchangeable black triangular bezel for a clean, professional panel finish
Technical Specifications
Part Number 331-810-012-004G Instrument Diameter 52 mm (2 1/16 in) Panel Hole Diameter 52 mm (2 1/16 in) Outside Diameter 59.25 mm (2 1/3 in) Installation Depth 53 mm Measurement Range 0 - 99999.9 hours Accuracy ± 5 seconds per day at room temperature Operating Voltage 8 - 12V DC Current Consumption (Without Illumination) < 23 mA Illumination Floodlight, 24V - 2 W (white, green, or red) Digits 6 digits, white illuminated Bezel Interchangeable black triangular bezel (threaded ring) Lens Single anti-glare plastic lens Connectors AMP male blade connector 6.3 x 0.8 mm Operating Temperature -30°C to +85°C Mechanical Shock Resistance Max 1G, 25Hz - 2000Hz (8 hours) EMC According to EN 13309 and ISO 13766 Certifications CE Country of Origin Malaysia EAN 4103590690081 HS Code 90291000 Weight 0.13 kg Packaging VDO Instrument OEM bulk -
