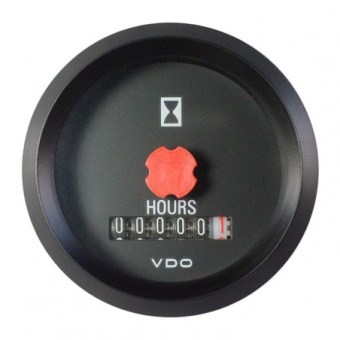

The VDO Cockpit International 331-810-012-001B engine hours counter is a 52 mm, 12 V instrument designed to accurately record total engine running time for maintenance planning across vehicles and machinery. Installed in a standard 52 mm panel cutout and triggered via the ignition-switch signal, it tracks from 0 to 99999.9 hours with clear black-dial, white-digit readability, while its IP64-protected front and wide operating temperature range support dependable operation in demanding environments.
- Description
- Ask a Question
-
Cockpit International 52 mm 12 V Engine Hours Counter Gauge
Built for dependable service tracking, the VDO 331-810-012-001B is a Cockpit International engine hours counter for 12 V systems. Designed for a standard 52 mm instrument panel opening, it logs engine run time via an ignition-switch input—ideal for scheduling oil changes, inspections, and maintenance intervals on vehicles and machinery.
Compatibility
- Vehicles with 12 V DC electrical systems and ignition-switch hour-count input
- Machinery with 12 V DC electrical systems and ignition-switch hour-count input
- Instrument panels with a 52 mm mounting hole
Product Details
- Brand: VDO
- Series: Cockpit International
- Component Type: Engine Hours Counter (EHC) gauge
- Mounting Location: Instrument panel (52 mm cutout)
- Signal Input: Engine hours counter signal via ignition switch (positive ignition feed)
- Connections: AMP male blade connector 6.3 x 0.8 mm (2x)
- Packaging: OEM bulk packaging
- Country of Origin: Malaysia
Features
- Accurately tracks total engine operating hours to support maintenance scheduling
- High-visibility black dial with white digits for quick reading
- IP64 front protection helps resist dust and water splashes in daily operation
- Low current draw (no illumination) supports energy-efficient monitoring
- Durable design with wide temperature capability for diverse working environments
Technical Specifications
Part Number 331-810-012-001B Operating Voltage 11–16 V DC (12 V system) Measuring Range 0–99999.9 hours Accuracy ± 5 seconds per day (at room temperature) Current Consumption (No Illumination) < 10 mA Panel Hole Diameter 52 mm (2 1/16 in) Outside Diameter 59.25 mm (2 1/3 in) Installation Depth 53 mm Locking Height (With Spinlock Nut) 0.5–20 mm Dial 6 digits Dial Color Black Digit Color White Lens Single, anti-glare plastic Bezel Triangular black threaded ring Front Protection IP64 (DIN 40050), ozone-proof, UV-proof Rear Protection IP42 (DIN 40050) Operating Temperature -30°C to +85°C Nominal Position NL 0 to NL 90 (DIN 16257) Housing Flame-retardant plastic CE Standard Yes HS Code 90291000 EAN Code 410359069018
OEM Package Contents
- VDO Cockpit International 331-810-012-001B engine hours counter
- Spinlock nut
-
