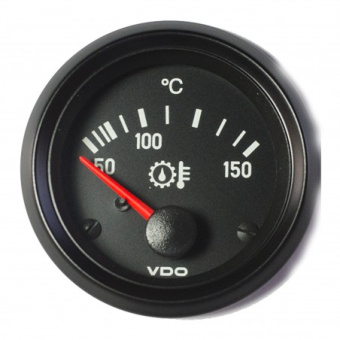

The VDO 310-040-015C gear oil temperature gauge is a 52 mm Cockpit International instrument built for dependable driveline temperature monitoring on 24V systems. Covering +50°C to +150°C, it reads input from a VDO NTC thermistor (322.8–18.6 Ohm) to deliver stable, accurate indications for engine monitoring and protection. With floodlight dial illumination in white, green, or red, a black bezel, and an IP64-rated front, it stays easy to read and rugged enough for automotive, industrial, and marine installations.
- Description
- Ask a Question
-
Cockpit International 52 mm Gear Oil Temperature Instrument for 24V Systems
The VDO 310-040-015C is a Cockpit International gear oil temperature gauge engineered for clear, consistent monitoring in demanding environments. Designed for 24V DC electrical systems, it measures gear oil temperature from +50°C to +150°C and works with a VDO NTC thermistor input (322.8 618.6 Ohm) for precise analogue signal tracking. Its rugged front protection and multi-colour floodlight illumination make it a strong fit for instrument panels in automotive, industrial, and marine applications.
Compatibility
- Automotive 24V systems
- Industrial 24V equipment
- Marine 24V installations
Product Details
- Brand: VDO
- Part Number: 310-040-015C
- Series: VDO Cockpit International
- Instrument Type: Gear oil temperature gauge
- Signal Input: VDO NTC thermistor (322.8 618.6 Ohm)
- Bezel: Interchangeable black triangular bezel with threaded ring (special tool required)
- Lens: Single anti-glare plastic lens
- Packaging: VDO Instruments OEM bulk (10 pieces)
Features
- Supports drivetrain protection by providing continuous gear oil temperature indication.
- High visibility design with a red backlit pointer and selectable white, green, or red floodlight illumination.
- Built for tough duty with IP64 front protection for dust and water resistance.
- Designed for secure panel mounting in standard 52 mm instrument cut-outs.
- Tested to standards listed for EMC and mechanical shock performance.
Technical Specifications
Temperature Measurement Range +50C to +150C Operating Voltage 21.5 630V DC (24V system) Current Consumption (Without Illumination) 131 mA Sensor Signal VDO NTC thermistor 322.8 618.6 Ohm Dial Illumination Floodlight 24V 62 Watt (White / Green / Red) Deflection Angle 90 Warning Light Without Panel Hole Diameter 52 mm (2 1/16 in) Outside Diameter 59.25 mm (2 1/3 in) Installation Depth 67.5 mm Bracket Locking Height 0.5 68 mm Main Connections AMP male blade connector 6.3 _x000D_7 0.8 mm (3x) Illumination Connections AMP male blade connector 6.3 _x000D_7 0.8 mm (2x) Reverse Polarity Protection Yes Front Protection Class IP64 (DIN 40050), ozone-proof, UV-proof Rear Protection Class IP42 (DIN 40050) Operating Temperature -30C to +85C Mechanical Shock Resistance (8 Hours) Max 1G 625 Hz 62000 Hz EMC Test According to EN 13309 and ISO 13766 Nominal Position NL 0 to NL 90 (DIN 16257) Housing Plastic, flame retardant Colour Black Country of Origin Malaysia EAN Code 410359068958 HS Code 85122000 Weight 1.01 kg
Included in the Package
- VDO Cockpit International 310-040-015C gear oil temperature gauge
- Steel bracket, zinc-plated
-
