The VDO 323-803-004-007D temperature sender is a multi-purpose coolant temperature sensing unit for VDO engine monitoring, providing an analog resistance signal across a +40°C to +120°C measuring range and adding an integrated warning contact that closes as temperature rises. Built with an M14 x 1.5 thread for secure installation, it supports temperature monitoring in coolant, water, air, engine oil, transmission oil, and fuel systems, and operates on 6–24 V DC to suit a wide range of vehicle electrical architectures.
- Description
- Ask a Question
-

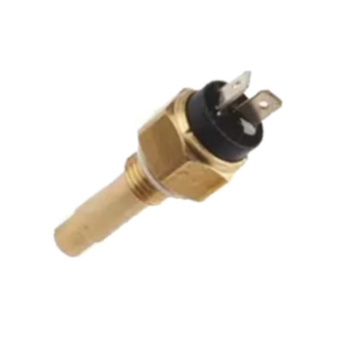

VDO Temperature Sender with Warning Contact, 120°C Range
The VDO 323-803-004-007D is a coolant temperature sender engineered for VDO engine monitoring and dashboard instrumentation where stable readings and a reliable over-temperature alert are required. It measures temperatures from +40°C to +120°C and provides an analog resistance output, while the integrated warning contact closes with rising temperature to support alarm or indicator circuits.
Compatibility
- Coolant
- Water
- Air
- Engine oil
- Transmission oil
- Fuel
Product Details
- Brand: VDO
- Part Number: 323-803-004-007D
- Component Type: Coolant temperature sender with warning contact
- Application: VDO engine monitoring
- Thread: M14 x 1.5 male
- Type of Connection: B
- Country of Origin: Czech Republic
- HS Code: 90259000
- EAN Code: 4103590949370
- Weight: 0.07 kg
Features
- Analog resistance output for accurate gauge and monitoring input
- Warning contact closes with rising temperature for clear over-temperature alerting
- Designed for 6–24 V DC electrical systems
- M14 x 1.5 threaded mounting supports a secure, service-friendly fit
Technical Specifications
Temperature Measuring Range +40°C to +120°C Operating Temperature (Min to Max) -40°C to +150°C Sender Element Length Plus Thread 40 mm Sensor Diameter 10.8 mm Installation Torque 20 Nm Operating Voltage 6 - 24 V DC Resistor Range 287.4 - 22.7 Ohm Sensor Signal Single-pole common ground Warning Contact 100 ± 6 Warning Contact Switching Capacity 1.2 - 3 W non-inductive Warning Contact Behavior Contact closes with rising temperature Temperature Sender Connector AMP male T-model 6.3 x 0.8 mm Warning Contact Connector AMP male T-model 6.3 x 0.8 mm Reference Resistance at 100°C 38.47 Ohm ± 2.98 Ohm
- Alternative Notation: 323 803 004 007D; 323/803/4/7D
- Catalog Reference: VDO 2014 Vehicle Electronics Catalog, Page 142 - 143
-
