The VDO Cockpit International 180-035-005G mechanical coolant temperature gauge provides clear, reliable engine temperature monitoring across +40°C to +120°C in a 52 mm panel format. Built for dependable cockpit and dashboard instrumentation, it uses a mechanical dry sensor connection (M10 x 1) and supports 12 V or 24 V illumination via AMP male blade connectors, while the bracket mounting system accommodates a 0.5 mm to 8 mm locking height for secure installation.
- Description
- Ask a Question
-

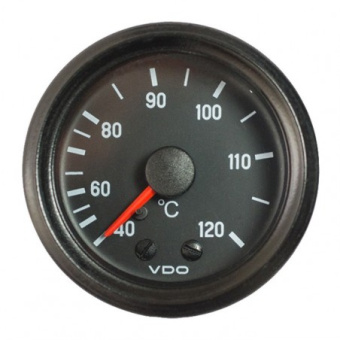

VDO Cockpit International Mechanical Coolant Temperature Gauge 52 mm
Designed for dependable engine monitoring, the VDO 180-035-005G is a Cockpit International mechanical coolant temperature gauge for panel installation. It reads coolant temperature from +40°C to +120°C and integrates into dash or console layouts with a 52 mm mounting hole. Illumination is supported on 12 V or 24 V systems, making it a practical choice for mixed-voltage vehicle and vessel instrument panels.
Compatibility
- VDO engine monitoring installations
- Automotive applications using mechanical coolant temperature instrumentation
Technical Specifications
Part Number 180-035-005G Gauge Type Mechanical coolant temperature gauge (dry sensor) Temperature Range +40°C to +120°C Panel Hole Diameter 52 mm (2 1/16 inch) Outside Diameter 59.25 mm (2 1/3 inch) Installation Depth 67.5 mm Locking Height with Bracket 0.5 mm to 8 mm Sensor Connection M10 x 1 Illumination Connection AMP male blade connector 6.3 x 0.8 mm (2x) Operating Voltage (Illumination Only) 12 V standard, 24 V optional Current Consumption (Illumination Only) 2 W at 12 V and 24 V Dial Color Black Front Protection Class IP64 (DIN 40050) Rear Protection Class IP42 (DIN 40050) Operating Temperature -30°C to +85°C HS Code 85122000 EAN 4103590687654 Weight 0.12 kg Country of Origin India
Product Details
- Brand: VDO
- Series: Cockpit International
- Category: Temperature gauges
- Communication: Analog
- Function: Coolant temperature monitoring
- Design: Black dial with triangular black bezel (threaded ring)
- Lens: Single anti-glare
- Retail Package: Temperature gauge; steel bracket (zinc-plated and chromatized)
Features
- Mechanical temperature indication for straightforward, dependable coolant monitoring
- 52 mm panel format suits common dashboard and console cutouts
- M10 x 1 mechanical sensor connection for secure integration into the temperature sensing line
- 12 V or 24 V illumination support for flexible electrical system matching
- Bracket mounting with a wide locking-height range for stable, vibration-resistant installation
- IP-rated protection helps the instrument remain reliable in demanding environments
-
