The VDO 150-035-020G Cockpit International mechanical engine oil pressure gauge provides clear, precise oil-pressure monitoring for automotive, marine, and industrial engines as part of a VDO engine monitoring dashboard setup. With a 52 mm installation diameter and M12 x 1.5 mechanical pressure connection, it integrates cleanly into standard panels while the black dial, white pointer, and optional illumination (white, green, or red) support fast readability. An IP64-rated front and a -30°C to +85°C operating range help it stay dependable in demanding environments.
- Description
- Ask a Question
-

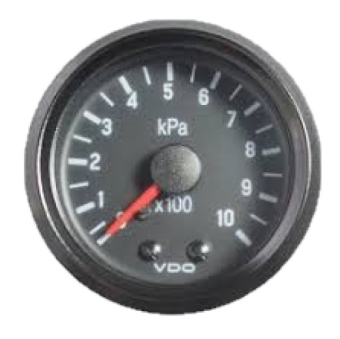

Cockpit International Mechanical Oil Pressure Gauge in 52 mm Format
Built for reliable engine monitoring, the VDO 150-035-020G is a mechanical engine oil pressure gauge from the Cockpit International series. Designed for integration into VDO engine monitoring panels, it helps you track oil pressure at a glance to support safe operation and confident decision-making on the road, on board, or on industrial equipment.
Compatibility
- VDO engine monitoring systems
- Automotive engine oil pressure monitoring
- Marine engine oil pressure monitoring
- Industrial engine oil pressure monitoring
- Mechanical pressure input with M12 x 1.5 connection
Product Details
- Brand: VDO
- Part Number: 150-035-020G
- Series: Cockpit International
- Gauge Type: Mechanical oil pressure gauge
- Dial: Black
- Pointer: White
- Lens: Single anti-glare plastic
- Bezel: Triangular black with threaded ring
- Front Protection: IP64 (DIN 40050)
- Rear Protection: IP42 (DIN 40050)
Technical Specifications
Pressure Range 0 to 10 kPa x 100 Installation Diameter 52 mm (2 1/16 in) Outside Diameter 59.25 mm (2 1/3 in) Installation Depth 67.5 mm Locking Height with Bracket 0.5 mm to 8 mm Mechanical Connection M12 x 1.5 Deflection Angle 90° Operating Temperature -30°C to +85°C Illumination Voltage 12 V standard, 24 V optional Illumination Power Consumption 12 V 2 W, 24 V 2 W Dial Floodlight Illumination 12 V 3.4 W (white, green, red) and 24 V 3 W optional Illumination Connection Optional AMP male blade connector 6.3 x 0.8 mm (2x) Compliance CE certified; EMC tested to EN 13309 and ISO 13766 Nominal Position NL 0 to NL 90 (DIN 16257) Mechanical Shock (8 Hours) Max 1G, 25 Hz to 2000 Hz Housing Material Flame-retardant plastic EAN 4103590687524 HS Code 85122000 Weight 0.22 kg Country of Origin India
Features
- Mechanical pressure measurement for direct, responsive oil-pressure indication
- Standard 52 mm panel fit helps maintain a clean, factory-style dashboard layout
- Black dial, white pointer, and anti-glare lens improve readability in changing light
- Optional multi-color illumination supports night operation and enclosed engine rooms
- IP64 front protection helps resist dust and water exposure, plus UV and ozone resistance for long service life
- Interchangeable bezel design (special tool required) supports consistent styling across an instrument panel
In the Box
- VDO Cockpit International 150-035-020G oil pressure gauge
- Steel bracket, zinc-plated and chromatized
-
