The VDO Cockpit International 180-035-002G mechanical coolant temperature gauge is a 52 mm instrument built for clear, accurate monitoring from +40°C to +120°C using a mechanical dry sensor connection (M10 x 1). Designed for straightforward panel installation with an adjustable bracket locking height, it supports illuminated dashboards via a 12 V or 24 V illumination supply, making it a dependable choice for engine cooling system monitoring.
- Description
- Ask a Question
-

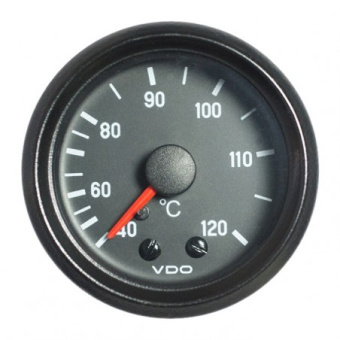

Cockpit International 52 mm Mechanical Coolant Temperature Gauge Up to 120°C
Built for dependable engine monitoring, the VDO 180-035-002G Cockpit International coolant temperature gauge provides a clear analogue display of coolant temperature from +40°C to +120°C. This is a mechanical gauge designed to work with a dry sensor connection (M10 x 1), and it installs cleanly into a standard 52 mm panel opening with bracket-based retention.
Compatibility
- Cockpit International instrument panels with a 52 mm mounting hole
- Mechanical coolant temperature sensing using an M10 x 1 dry sensor connection
- 12 V illumination circuits
- 24 V illumination circuits
Technical Specifications
Part Number 180-035-002G Gauge Type Mechanical coolant temperature gauge Temperature Range +40°C to +120°C Panel Hole Diameter 52 mm (2 1/16 inch) Outside Diameter 59.25 mm (2 1/3 inch) Installation Depth 67.5 mm Locking Height With Bracket 0.5 mm to 8 mm Sensor Connection M10 x 1 Deflection Angle 90° Illumination Connection AMP male blade connector 6.3 x 0.8 mm (2x) Illumination Operating Voltage 12 V standard, 24 V optional Illumination Power 12 V 2 W, 24 V 2 W Dial Color Black Pointer Red backlight Lens Single anti-glare Front Protection Class IP64 (DIN 40050) Rear Protection Class IP42 (DIN 40050) Operating Temperature -30°C to +85°C HS Code 85122000 EAN Code 410359068763 Weight 0.14 kg Country of Origin India
Product Details
- Brand: VDO
- Series: Cockpit International
- Category: Temperature gauges
- Function: Coolant temperature monitoring for engine cooling systems
- Mounting Style: Panel mount with bracket, adjustable locking height
Features
- Mechanical gauge design with dry sensor connection for dependable analogue temperature indication
- 52 mm format for clean integration into standard instrument panels
- Illumination support for 12 V or 24 V electrical systems to improve night visibility
- Cockpit International styling with black dial for a consistent dashboard look
-
