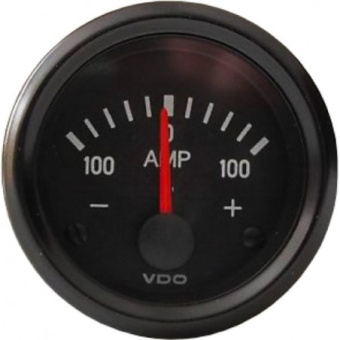

The VDO 190-037-003G Cockpit International ammeter gauge is a 52 mm panel instrument built for precise DC current monitoring from -100A to +100A in vehicle or equipment electrical systems. Designed for VDO engine monitoring dashboards, it supports clear backlit visibility with 12 V (standard) or 24 V (optional) illumination at 2 W, and installs securely with an M8 hexnut connection and a 67.5 mm installation depth for a neat, professional fit.
- Description
- Ask a Question
-
Cockpit International 52 mm Ammeter Gauge for DC Current Monitoring
The VDO 190-037-003G is a Cockpit International ammeter gauge engineered to track charging and load current flow in DC electrical systems. With a clear -100A to +100A DC scale, it helps you keep a close eye on alternator output and battery draw in VDO engine monitoring installations, while the illuminated dial improves readability in low-light cockpits and dashboards.
Compatibility
- VDO engine monitoring applications
- 12 V systems (illumination standard)
- 24 V systems (illumination optional)
Technical Specifications
Series Cockpit International Measurement Range -100A to +100A DC Signal Input -100A to +100A DC (analog) Functionality Current measurement without shunt Panel Hole Diameter 52 mm (2 1/16 Inch) Outside Diameter 59.25 mm (2 1/3 Inch) Installation Depth 67.5 mm Locking Height with Bracket 0.5 mm to 8 mm Connection M8 hexnut Illumination Connection AMP male blade connector 6.3 x 0.8 mm (2x) Illumination Supply 12 V standard, 24 V optional Illumination Consumption 2 W (12 V), 2 W (24 V) Operating Voltage 11 to 16 V DC Deflection Angle 320° Dial Color Black Pointer Red backlight Lens Single, anti-glare Bezel Triangular black (threaded ring), interchangeable (special tool required) Front Protection Class IP64 (DIN 40050), ozone proof, UV proof Rear Protection Class IP42 (DIN 40050) Operating Temperature -30°C to +85°C EMC According to EN 13309 and ISO 13766 CE Yes Housing Plastic, flame retardant EAN Code 4103590687555 HS Code 90303370 Weight 0.20 kg Predecessor 190-037-003C Country of Origin India
Product Details
- Brand: VDO
- Part Number: 190-037-003G
- Category: Ammeter gauges
- Mounting Style: 52 mm panel installation
- Retail Package: Ammeter gauge; steel bracket (zinc-plated and chromatized); connecting material ordered separately
Features
- Bidirectional current display helps you see charge and discharge at a glance
- High-visibility dial with illumination support for 12 V and 24 V setups
- Rugged protection ratings support dependable operation in demanding installations
- Secure M8 terminal connection for stable electrical integration
- Cockpit International styling for a clean, professional instrument panel look
-
