The VDO Cockpit International 190-037-002C ammeter gauge is a 52 mm panel instrument built to track charging and discharge current from -60 A to +60 A DC for dependable electrical system monitoring. Designed for clean installations, it fits a 52 mm panel cutout with a 67.5 mm installation depth and a bracket locking height adjustment from 0.5 mm to 8 mm. Illumination supports 12 V or 24 V (2 W), with an M5 hex nut connection for the gauge and AMP male blade terminals for lighting, making it a practical choice for VDO engine monitoring dashboards.
- Description
- Ask a Question
-

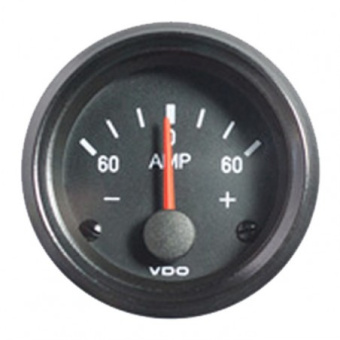

VDO Cockpit International 52 mm Ammeter Gauge for -60 to +60 A DC
Built for clear, at-a-glance electrical system supervision, the VDO 190-037-002C Cockpit International ammeter gauge measures charge and discharge current from -60 A to +60 A DC. As part of a VDO engine monitoring instrument setup, it helps verify alternator output, battery load, and overall current flow while maintaining a compact 52 mm panel format.
Compatibility
- VDO Engine Monitoring instrument installations
- Cockpit International instrument panels with 52 mm cutout
- 12 V illumination circuits (standard)
- 24 V illumination circuits (optional)
Technical Specifications
Part Number 190-037-002C Series Cockpit International Measurement Range -60 A to +60 A DC Function Current measurement without shunt Panel Hole Diameter 52 mm (2 1/16 inch) Outside Diameter 59.25 mm (2 1/3 inch) Installation Depth 67.5 mm Bracket Locking Height 0.5 mm to 8 mm Main Connection M5 hex nut Illumination Connection AMP male blade connector 6.3 x 0.8 mm (2x) Illumination Power 12 V (standard) or 24 V (optional), 2 W Deflection Angle 320° Dial Color Black Pointer Red backlight Dial Illumination Floodlight: 12 V 2 W (white, green, red) and 24 V 2 W (optional) Lens Single anti-glare Bezel Triangular black (threaded ring) Bezel Interchangeable Yes (special tool required) Front Protection Rating IP64 (DIN 40050), ozone proof, UV proof Rear Protection Rating IP42 (DIN 40050) Operating Temperature -30°C to +85°C CE Yes EMC According to EN 13309 and ISO 13766 Nominal Position NL 0 to NL 90 (DIN 16257) Housing Plastic flame retardant Color Black EAN 4103590687531 HS Code 90303370 Weight 0.22 kg Country of Origin India
Product Details
- Brand: VDO
- Category: Ammeter gauges
- Instrument Type: Cockpit International ammeter gauge
- Application: VDO engine monitoring
Features
- Measures both charge and discharge current for confident alternator and battery monitoring
- Compact 52 mm format suited to tight dashboards and console layouts
- No external shunt required, simplifying wiring in many standard installations
- 12 V or 24 V illumination support helps match mixed-voltage fleets and marine electrical systems
- High front ingress protection rating (IP64) for robust performance in exposed helm or cabin panels
Package Contents
- VDO Cockpit International 190-037-002C ammeter gauge
- Steel bracket, zinc-plated and chromated
-
