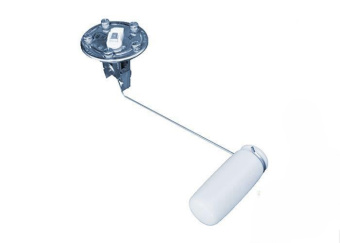

The VDO 221-825-008-048C fuel level float arm sender unit with 541 mm arm length is built for DAF EG.38/199 applications and provides dependable, analog fuel level feedback from the tank to the vehicle’s instrument system. Designed as a lever-arm type level sender with a bayonet mounting flange, it delivers a 3–180 Ohm signal (empty to full) and supports a wide 6–24 V DC operating range for consistent fuel level monitoring in commercial vehicle duty.
- Description
- Ask a Question
-
Fuel Level Lever-Arm Sender Unit for DAF EG.38/199 (L541 mm)
The VDO 221-825-008-048C is a fuel level float arm sender unit designed to support accurate tank level measurement in DAF EG.38/199 applications. Using a proven lever-arm float mechanism, it converts fuel level movement into a stable analog resistance signal for the dashboard gauge or monitoring system.
Compatibility
- DAF EG.38/199
Technical Specifications
Part Number 221-825-008-048C Sender Type Fuel lever-arm sender, standard Arm Length 541 mm Measurement Range 3 - 180 Ohm Signal (Empty to Full) 3 - 180 Ohm Resistance (Empty) 3 Ohm Resistance (Full) 180 Ohm Operating Voltage 6 - 24 V DC Operating Temperature -30 °C to +70 °C Tank Depth 405 mm + 2 mm Tank Depth Range 400 mm to 450 mm Mounting Flange Bayonet 50.5 - 55.0 mm Installation Dimension 50.5 - 55.0 mm bayonet Fuel Compatibility Oil, petroleum, diesel, gasoline Communication Analog Sensor Signal Insulated return Connector Type DIN 72585 A1-2.1 SN/K1 Warning Contact None Optional Warning Contact VDO A2C59510886 Makepoint Switch Adjustable Sensor No Functionality Fuel level and pump Category Fuel level sensors Packaging VDO sensor retail package HS Code 90269000 EAN Code 4103590948298 Weight 0.21 kg Country of Origin Czech Republic Vehicle Brand DAF Article Status Discontinued article Referenced Full Technical Specification Number VDO 221 824 054 049C
Product Details
- Brand: VDO
- Component Type: Fuel level float arm sender unit
- System Location: Fuel tank level measurement system
- Role: Converts float position into an analog resistance signal for accurate fuel level indication
Features
- Stable 3–180 Ohm analog output to match common fuel gauge inputs
- Bayonet mounting design for secure installation on suitable tank openings
- Supports 6–24 V DC electrical systems used across commercial vehicles
- Engineered for dependable readings across typical operating temperatures in road use
-
