Osculati AISI 316 Stainless Steel Self-Locking Hex Nuts DIN 982 / DIN 985, M4–M12

ID 1402796

$ 34.71

1-2 weeks delivery time

Diameter, mm:

Item:

5 pcs
10 pcs
25 pcs
50 pcs

Osculati self-locking hex nuts are manufactured from AISI 316 stainless steel and designed for metric threaded connections requiring resistance to loosening caused by vibration or movement. Their hexagonal profile allows tightening with a suitable wrench or socket, while the integrated locking feature provides additional resistance to unintended rotation. The range includes six thread sizes from M4 to M12. The M4 variant is specified as a DIN 985 low-type nut, while the remaining sizes are listed under DIN 982. Supplied in boxes containing 5 to 50 pieces, depending on the selected size.

Description
Ask a Question

Osculati AISI 316 Stainless Steel Self-Locking Hex Nuts DIN 982 / DIN 985

Osculati self-locking hexagonal nuts are manufactured from AISI 316 stainless steel and designed for threaded fastening connections where resistance to loosening is required. They feature an external hexagonal profile, an internal metric thread and a self-locking mechanism that helps resist unintended rotation caused by vibration or movement.

The hexagonal shape allows tightening using a matching wrench or socket. The internal thread engages with compatible metric bolts, machine screws or threaded rods, while the self-locking feature provides additional resistance to loosening compared with a standard hex nut.

According to the Osculati catalogue, the M4 variant is a low-type self-locking nut conforming to DIN 985. The M5, M6, M8, M10 and M12 variants are listed under DIN 982. The correct configuration should be selected according to the required thread size and available installation space.

AISI 316 stainless steel provides corrosion resistance for suitable marine, outdoor and general mechanical applications. These nuts can be used with compatible marine fittings, equipment mounts, brackets and other threaded assemblies.

The range includes six metric thread sizes from M4 to M12. Each size is supplied in a box containing a specified number of nuts.

Technical Specifications

Brand	Osculati
Product Type	Self-Locking Hex Nut
Material	AISI 316 Stainless Steel
Standards	DIN 982; DIN 985 for M4 low-type variant

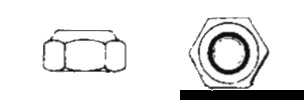

Nut Shape	Hexagonal
Thread Type	Internal Metric Thread
Locking Feature	Self-Locking
Available Thread Sizes	M4, M5, M6, M8, M10, M12
Box Quantities	5, 10, 25, 50 pcs
Number of Variants	6

Features and Applications

AISI 316 stainless steel construction for corrosion resistance.
Self-locking design helps resist loosening caused by vibration and movement.
Hexagonal profile for installation using a compatible wrench or socket.
Internal metric threads for use with matching bolts, screws and threaded rods.
M4 version features a DIN 985 low-type configuration.
M5 to M12 versions are listed under DIN 982.
Suitable for compatible marine fittings, mounting brackets and mechanical assemblies.
Supplied in boxes containing 5 to 50 nuts, depending on size.

Available Thread Sizes and Part Numbers

Thread Size	Standard	Box Quantity	Osculati Part No.
M4	DIN 985 Low Type	50 pcs	A4-982-04
M5	DIN 982	25 pcs	A4-982-05
M6	DIN 982	25 pcs	A4-982-06
M8	DIN 982	10 pcs	A4-982-08
M10	DIN 982	10 pcs	A4-982-10
M12	DIN 982	5 pcs	A4-982-12

Size Selection

Select the required metric thread size to match the corresponding bolt, machine screw or threaded rod. Check that the nut is compatible with the intended fastening application and that sufficient installation space is available.

The M4 variant has a different height classification from the other available sizes. The number of nuts per box is fixed for each Osculati part number.
