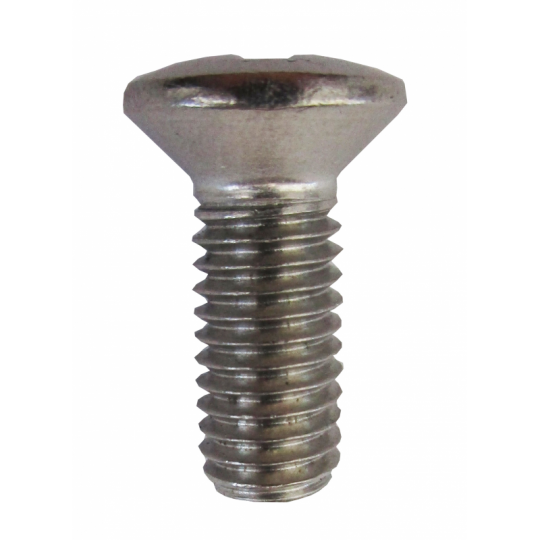

DIN 966 A2 Stainless Steel Cross-Recessed Raised Countersunk Head Machine Screws M3–M6, 12–80 mm

ID 1402357

$ 6.99

1-2 weeks delivery time

Diameter, mm:

Length, mm:

DIN 966 cross-recessed raised countersunk head machine screws are manufactured from A2 stainless steel and designed for threaded fastening applications requiring a neat, slightly raised head finish. Their raised countersunk heads combine a tapered underside with a rounded upper profile, while the cross-recessed drive allows installation using a compatible screwdriver bit. The metric threads are intended for use with matching nuts or threaded holes, and the A2 stainless steel construction provides corrosion resistance for general indoor and outdoor assembly applications. The range includes 13 dimensional configurations across four nominal thread sizes — M3, M4, M5 and M6 — with lengths from 12 to 80 mm depending on the selected thread size.

Description
Ask a Question

DIN 966 A2 Stainless Steel Cross-Recessed Raised Countersunk Head Machine Screws M3–M6, 12–80 mm

DIN 966 raised countersunk head machine screws are manufactured from A2 stainless steel and designed for metric threaded fastening applications. They feature a raised countersunk head with a tapered underside and a slightly domed upper surface, providing a neat, visible head finish after installation.

The tapered section of the head fits into a suitably prepared countersunk recess, while the rounded upper portion remains slightly raised above the mounting surface. The cross-recessed drive allows tightening and removal using a compatible screwdriver bit.

These machine screws have metric threads intended for use with matching nuts or pre-threaded holes. Unlike self-tapping screws, they are not designed to form their own threads during installation.

A2 stainless steel provides corrosion resistance for general mechanical, equipment and assembly applications, including indoor and outdoor installations where this material grade is suitable.

The range includes 13 dimensional configurations across four nominal metric thread sizes: M3, M4, M5 and M6. Available lengths range from 12 to 80 mm depending on the selected thread size. Each version is identified by an individual FNI part number.

Technical Specifications

Product Type	Raised Countersunk Head Machine Screw
Standard	DIN 966
Catalogue Designation	TSP / TSC 966
Material	A2 Stainless Steel
Head Type	Raised Countersunk Head
Drive Type	Cross-Recessed
Thread Type	Metric Machine Thread
Available Thread Sizes	M3, M4, M5, M6
Available Length Range	12–80 mm
Number of Variants	13
Dimensions Format	Nominal Thread Size × Length
Supplier	Forniture Nautiche Italiane (FNI)

Features and Applications

Manufactured from corrosion-resistant A2 stainless steel.
DIN 966 raised countersunk head design.
Tapered head underside for installation in a suitable countersunk recess.
Slightly domed upper head profile for a neat, visible finish.
Cross-recessed drive for installation using a compatible screwdriver bit.
Metric thread for use with matching nuts or threaded holes.
Suitable for mechanical equipment, fittings and general assembly applications.
Available in four thread sizes and 13 dimensional configurations.

Available Sizes and Part Numbers

Thread Size	Length	FNI Part No.
M3	16 mm	Y966316
M3	25 mm	Y966325
M4	14 mm	Y966414
M4	20 mm	Y966420
M5	12 mm	Y966512
M5	20 mm	Y966520
M5	25 mm	Y966525
M5	30 mm	Y966530
M6	16 mm	Y966616
M6	45 mm	Y966645
M6	50 mm	Y966650
M6	60 mm	Y966660
M6	80 mm	Y966680

Size Selection

Select the required metric thread size and screw length according to the intended assembly. The screw thread must match the corresponding nut or threaded hole, and the mounting recess should accommodate the raised countersunk head profile. Available lengths vary by thread size; refer to the listed FNI part numbers.
