ID
1402322
$ 6.99
1-2 weeks delivery time
Diameter, mm:
- 3
- 4
- 5
- 6
- 8
Length, mm:
- 10
- 14
- 16
- 20
- 25
- 30
- 35
- 40
- 45
- 50
- 60
- 70
- 80
- 100
DIN 965 cross-recessed countersunk head machine screws are manufactured from A2 stainless steel and designed for fastening applications requiring a flush surface finish. Their flat countersunk heads fit into suitably prepared recesses, while the cross-recessed drive allows installation using a compatible screwdriver bit. The metric threads are intended for use with matching nuts or threaded holes, and the A2 stainless steel construction provides corrosion resistance for general indoor and outdoor assembly applications. The range includes 34 dimensional configurations across five nominal thread sizes — M3, M4, M5, M6 and M8 — with lengths from 10 to 100 mm depending on the selected thread size.
- Description
- Ask a Question
-

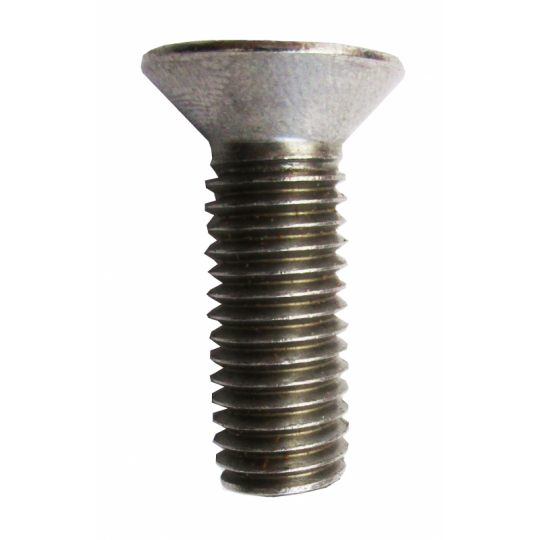

DIN 965 A2 Stainless Steel Cross-Recessed Countersunk Head Machine Screws M3–M8, 10–100 mm
DIN 965 machine screws are manufactured from A2 stainless steel and feature a flat countersunk head with a cross-recessed drive. They are designed for threaded fastening applications where the screw head should sit flush with the surrounding surface.
The countersunk head fits into a suitably prepared recess, providing a smooth installation surface. The cross-recessed drive allows tightening and removal using a compatible screwdriver bit. These screws have metric threads intended for fastening with matching nuts or pre-threaded holes rather than forming their own threads in the workpiece.
A2 stainless steel provides corrosion resistance for general mechanical, equipment and assembly applications, including indoor and outdoor installations where this material grade is suitable.
The range includes 34 dimensional configurations across five nominal metric thread sizes: M3, M4, M5, M6 and M8. Available lengths range from 10 to 100 mm depending on the selected thread size. Each configuration has an individual FNI part number.
Technical Specifications
Product Type Countersunk Head Machine Screw Standard DIN 965 Catalogue Designation TSP 965 Material A2 Stainless Steel Head Type Flat Countersunk Head Drive Type Cross-Recessed Thread Type Metric Machine Thread Available Thread Sizes M3, M4, M5, M6, M8 Available Length Range 10–100 mm Number of Variants 34 Dimensions Format Nominal Thread Size × Length
Features and Applications
- Manufactured from corrosion-resistant A2 stainless steel.
- DIN 965 flat countersunk head design for flush installation.
- Cross-recessed drive for use with a compatible screwdriver bit.
- Metric threads for fastening with matching nuts or threaded holes.
- Suitable for mechanical assemblies, equipment and general fastening applications.
- Available in five metric thread sizes and 34 dimensional configurations.
Available Sizes and Part Numbers
Thread Size Length FNI Part No. M3 14 mm Y965314 M3 16 mm Y965316 M3 25 mm Y965325 M3 30 mm Y965330 M4 10 mm Y965410 M4 16 mm Y965416 M4 20 mm Y965420 M4 25 mm Y965425 M4 30 mm Y965430 M4 35 mm Y965435 M4 40 mm Y965440 M4 50 mm Y965450 M5 10 mm Y965510 M5 16 mm Y965516 M5 20 mm Y965520 M5 30 mm Y965530 M5 40 mm Y965540 M5 45 mm Y965545 M5 50 mm Y965550 M5 60 mm Y965560 M5 70 mm Y965570 M6 100 mm Y9656100 M6 20 mm Y965620 M6 25 mm Y965625 M6 30 mm Y965630 M6 40 mm Y965640 M6 45 mm Y965645 M6 60 mm Y965660 M6 70 mm Y965670 M6 80 mm Y965680 M8 30 mm Y965830 M8 40 mm Y965840 M8 50 mm Y965850 M8 60 mm Y965860
Size Selection
Select the required metric thread size and screw length to match the intended fastening connection. The thread must be compatible with the corresponding nut or threaded hole, and the countersunk mounting recess should be suitable for the selected screw. Available lengths vary by thread size.
-
