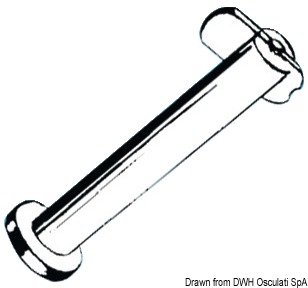

Osculati Stainless Steel Drop Nose Clevis Pins with Spring-Loaded Lock Ø6–10 mm

ID 1402458

$ 14.88

1-2 weeks delivery time

Diameter, mm:

Length, mm:

Osculati drop nose pins are stainless steel clevis pins fitted with a spring-loaded locking mechanism that helps prevent accidental withdrawal after installation. Designed for securing and retaining compatible components in marine hardware and mechanical assemblies, these pins provide a convenient alternative to conventional clevis pins requiring a separate retaining clip. Available in three diameters — 6, 8 and 10 mm — and lengths from 15 to 45 mm, the range includes seven dimensional configurations, each identified by an individual Osculati part number.

Description
Ask a Question

Osculati Stainless Steel Drop Nose Clevis Pins with Spring-Loaded Lock

Osculati drop nose pins are manufactured from stainless steel and feature an integrated spring-loaded locking mechanism. These clevis pins are designed to secure and retain compatible components while helping prevent accidental withdrawal from the mounting hole.

The spring-loaded locking nose provides a retaining function once the pin is inserted and the mechanism is engaged. Unlike conventional clevis pins that require a separate split pin or retaining clip, the locking mechanism is integrated into the pin assembly.

The stainless steel construction provides corrosion resistance for suitable marine, outdoor and general mechanical applications. These pins can be used for securing compatible fittings, removable connections and mechanical assemblies where a retaining pin with an integrated locking feature is required.

The range includes seven dimensional configurations in three nominal diameters: 6, 8 and 10 mm. Available lengths range from 15 to 45 mm, depending on the selected diameter. Each version is identified by an individual Osculati part number.

Technical Specifications

Product Type	Drop Nose Clevis Pin
Brand	Osculati
Material	Stainless Steel
Locking Mechanism	Spring-Loaded Locking Nose
Available Diameters	6, 8, 10 mm
Available Length Range	15–45 mm
Number of Variants	7
Dimensions Format	Diameter × Length

Features and Applications

Stainless steel construction for corrosion resistance.
Integrated spring-loaded locking mechanism.
Helps prevent unintended withdrawal from the mounting hole.
Does not require a separate split pin or retaining clip for its built-in locking function.
Suitable for compatible marine fittings and mechanical assemblies.
Available in seven sizes across three nominal diameters.

Available Sizes and Part Numbers

Diameter	Length	Osculati Part No.
6 mm	15 mm	37.107.01
6 mm	25 mm	37.107.02
8 mm	20 mm	37.107.03
8 mm	35 mm	37.107.04
10 mm	35 mm	37.107.05
10 mm	45 mm	37.107.06
10 mm	25 mm	37.107.07

Size Selection

Select the nominal pin diameter to match the mounting hole, then choose the required length to suit the connected components. Ensure that the locking nose can engage correctly after insertion and that the selected dimensions are appropriate for the intended installation.
