Osculati Stainless Steel Locking Clevis Pins Type B with Pull Ring Ø6–10 mm

ID 1402482

$ 20.86

1-2 weeks delivery time

Diameter, mm:

Length, mm:

Osculati Type B locking clevis pins are made from stainless steel and feature a loop-shaped pull ring with an integrated spring-loaded locking mechanism and safety tooth. The upper ring provides a convenient grip for handling and removing the pin, while the lower locking tab helps prevent accidental withdrawal from the connection. These pins are suitable for compatible marine fittings, removable mechanical connections and Laser dinghy vang assemblies. The range includes 15 variants in diameters of 6, 8 and 10 mm, with useful lengths (L) from 20 to 100 mm depending on diameter.

Description
Ask a Question

Osculati Stainless Steel Locking Clevis Pins Type B with Pull Ring Ø6–10 mm

Osculati Type B locking clevis pins are manufactured from stainless steel and feature a loop-shaped pull ring combined with a spring-loaded locking mechanism and safety tooth. They are designed to secure removable connections in compatible marine fittings, sailing equipment and mechanical assemblies.

The Type B configuration features an integrated upper pull ring, providing a convenient grip when inserting or removing the pin. Unlike Type A models with a flat circular head, the raised loop allows the pin to be handled more easily without gripping the cylindrical shaft directly.

At the opposite end, the spring-loaded locking tab engages after insertion and helps prevent accidental withdrawal from the mounting hole. This integrated locking system eliminates the need for a separate retaining clip in compatible applications.

The stainless steel construction provides corrosion resistance for suitable marine and outdoor environments. According to the Osculati catalogue, these pins are also suitable for fastening Laser dinghy vangs.

The Type B range includes 15 configurations with nominal diameters of 6, 8 and 10 mm. Useful lengths (L) range from 20 to 100 mm, depending on the selected diameter.

Technical Specifications

Product Type	Locking Clevis Pin / Plug with Locking Tab
Brand	Osculati
Type	Type B
Material	Stainless Steel
Head Design	Loop-Shaped Pull Ring
Locking Mechanism	Spring-Loaded Tab with Safety Tooth
Available Diameters	6, 8, 10 mm
Useful Length (L)	20–100 mm, depending on diameter
Number of Variants	15
Catalogue Application	Suitable for fastening Laser vangs
Dimensions Format	Diameter × Useful Length (L)

Features and Applications

Stainless steel construction for corrosion resistance.
Type B design with an integrated loop-shaped pull ring.
Pull ring provides a convenient grip for pin removal.
Spring-loaded locking tab with safety tooth.
Helps prevent accidental withdrawal from the connection.
Suitable for compatible marine fittings and removable mechanical connections.
Suitable for fastening compatible Laser dinghy vang fittings.
Available in three diameters and 15 dimensional configurations.

Available Sizes and Part Numbers

Diameter	Useful Length (L)	Osculati Part No.
6 mm	30 mm	37.267.30
6 mm	40 mm	37.267.40
6 mm	50 mm	37.267.50
8 mm	20 mm	37.269.20
8 mm	30 mm	37.269.30
8 mm	40 mm	37.269.40
8 mm	50 mm	37.269.50
8 mm	60 mm	37.269.60
8 mm	80 mm	37.269.80
10 mm	30 mm	37.271.30
10 mm	40 mm	37.271.40
10 mm	50 mm	37.271.50
10 mm	60 mm	37.271.60
10 mm	80 mm	37.271.80
10 mm	100 mm	37.271.10

Size Selection

Select the nominal pin diameter to match the mounting hole, then choose the required useful length (L) according to the connected components. Ensure that the spring-loaded locking tab has sufficient clearance to engage correctly after installation.

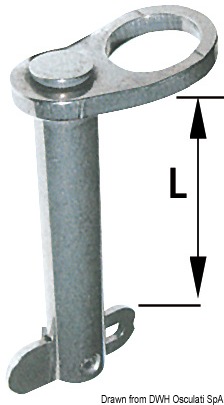

The useful length (L) refers to the functional shaft length indicated in the Osculati catalogue diagram, rather than the overall length including the pull ring.
