Osculati Stainless Steel Locking Clevis Pins Type A, Round Head Ø6–10 mm

ID 1402466

$ 28.13

1-2 weeks delivery time

Diameter, mm:

Length, mm:

Osculati Type A locking clevis pins are made from stainless steel and feature a round, flat head with an integrated spring-loaded locking mechanism and safety tooth. Designed to secure removable connections in marine fittings and mechanical assemblies, these pins help prevent accidental withdrawal without requiring a separate retaining clip. They are also suitable for fastening compatible Laser dinghy vang fittings. The range includes 15 variants in diameters of 6, 8 and 10 mm, with useful lengths (L) from 30 to 80 mm depending on the diameter.

Description
Ask a Question

Osculati Stainless Steel Locking Clevis Pins Type A, Round Head Ø6–10 mm

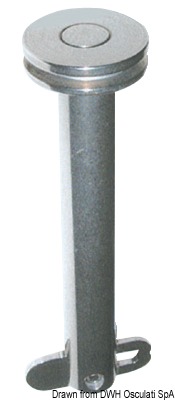

Osculati Type A locking clevis pins are made from stainless steel and feature a round, flat head combined with a spring-loaded locking mechanism and safety tooth. They are designed to secure removable connections in compatible marine fittings and mechanical assemblies.

The Type A configuration has a compact circular head without the upper pull ring used on Type B models. A spring-operated locking tab at the opposite end of the pin helps prevent accidental withdrawal after installation.

These pins are suitable for securing compatible rigging connections, fittings and removable mechanical assemblies. According to the Osculati catalogue, they can also be used for fastening Laser dinghy vangs.

The range includes 15 configurations with nominal diameters of 6, 8 and 10 mm. The useful length (L) ranges from 30 to 80 mm, depending on the selected diameter.

Technical Specifications

Product Type	Locking Clevis Pin
Brand	Osculati
Type	Type A
Material	Stainless Steel
Head Design	Round Flat Head
Locking Mechanism	Spring-Loaded Tab with Safety Tooth
Available Diameters	6, 8, 10 mm
Useful Length (L)	30–80 mm, depending on diameter
Number of Variants	15
Applications	Marine fittings, removable connections, compatible Laser vangs

Features and Applications

Stainless steel construction for corrosion resistance.
Type A round, flat head without an upper pull ring.
Integrated spring-loaded locking tab with safety tooth.
Helps prevent unintended withdrawal from the mounting hole.
Suitable for compatible marine fittings and mechanical assemblies.
Available in three nominal diameters and 15 dimensional configurations.

Available Sizes and Part Numbers

Diameter	Useful Length (L)	Osculati Part No.
6 mm	30 mm	37.266.30
6 mm	40 mm	37.266.40
6 mm	42 mm	37.266.42
6 mm	50 mm	37.266.50
6 mm	60 mm	37.266.60
8 mm	30 mm	37.268.30
8 mm	40 mm	37.268.40
8 mm	50 mm	37.268.50
8 mm	60 mm	37.268.60
8 mm	80 mm	37.268.80
10 mm	30 mm	37.270.30
10 mm	40 mm	37.270.40
10 mm	50 mm	37.270.50
10 mm	60 mm	37.270.60
10 mm	80 mm	37.270.80

Size Selection

Select the nominal diameter to match the mounting hole and choose the useful length (L) to suit the connected components. The locking tab must have sufficient clearance to engage correctly after insertion.
