Osculati Stainless Steel Blind Rivets with Normal Head Ø4–4.8 mm

ID 1402438

$ 31.19

1-2 weeks delivery time

Diameter, mm:

Length, mm:

Item:

100 pcs
500 pcs
1000 pcs

Osculati stainless steel blind rivets feature a normal head and are fitted with a stainless steel mandrel for fastening components where access is available from only one side of the assembly. Suitable for marine hardware, sheet metal and general fastening applications, these corrosion-resistant rivets are available in 4 mm and 4.8 mm diameters, with lengths from 10 to 20 mm depending on the selected diameter. The range includes 19 product variants in packs of 100, 500 or 1000 pieces, depending on the size. Each combination of diameter, length and pack quantity is identified by an individual Osculati part number.

Description
Ask a Question

Osculati Stainless Steel Blind Rivets with Normal Head Ø4–4.8 mm

Osculati stainless steel blind rivets are designed for permanent fastening applications where components need to be joined from one accessible side. They feature a normal head and are fitted with a stainless steel mandrel, providing corrosion resistance for suitable marine, outdoor and general mechanical applications.

These blind rivets are installed using a compatible rivet tool. During installation, the tool pulls the mandrel to deform the rivet body and secure the assembled materials. The mandrel then breaks at its designed breaking point, completing the fastening process.

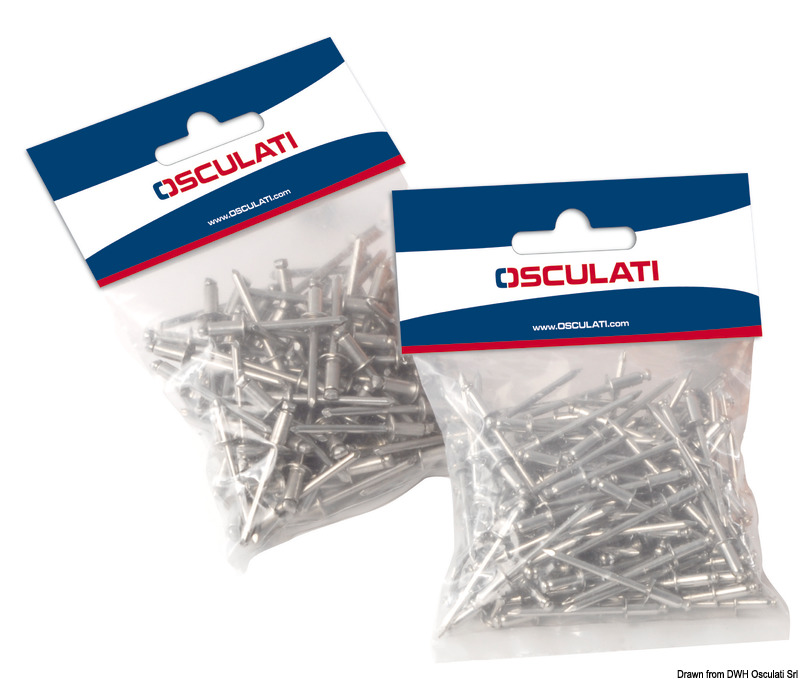

Osculati offers these rivets in two nominal diameters, 4 mm and 4.8 mm, with lengths ranging from 10 to 20 mm. Available packaging options include 100-piece display bags and bulk boxes containing 500 or 1000 pieces. Pack quantities vary depending on the selected rivet dimensions.

The range includes 19 product variants, each identified by an individual Osculati part number. Select the required diameter, length and pack quantity according to the installation and purchasing requirements.

Technical Specifications

Product Type	Blind Rivet
Brand	Osculati
Rivet Material	Stainless Steel
Mandrel Material	Stainless Steel
Head Type	Normal Head
Available Diameters	4 mm, 4.8 mm
Available Lengths	10, 12, 13, 14, 16, 20 mm (depending on diameter)
Pack Quantities	100, 500 or 1000 pieces
Packaging	Display Bag or Box
Number of Product Variants	19

Features and Applications

Stainless steel rivet body with a stainless steel mandrel.
Normal head design for general blind riveting applications.
Allows fastening where the rear side of the assembly is not accessible.
Suitable for compatible metal fittings, panels and mechanical assemblies.
Available in 4 mm and 4.8 mm nominal diameters.
Different lengths for various material combinations and fastening requirements.
100-piece display bags for smaller quantities.
500-piece and 1000-piece boxes for bulk purchasing.

Available Sizes, Packaging and Part Numbers

Diameter	Length	Quantity	Packaging	Osculati Part No.
4 mm	10 mm	1000 pcs	Box	37.218.01
4 mm	10 mm	100 pcs	Display Bag	37.221.01
4 mm	12 mm	1000 pcs	Box	37.218.11
4 mm	12 mm	100 pcs	Display Bag	37.221.11
4 mm	13 mm	100 pcs	Display Bag	37.221.02
4 mm	14 mm	1000 pcs	Box	37.218.03
4 mm	14 mm	100 pcs	Display Bag	37.221.13
4 mm	16 mm	500 pcs	Box	37.220.03
4 mm	16 mm	100 pcs	Display Bag	37.221.03
4.8 mm	10 mm	500 pcs	Box	37.220.04
4.8 mm	10 mm	100 pcs	Display Bag	37.221.04
4.8 mm	12 mm	500 pcs	Box	37.220.12
4.8 mm	12 mm	100 pcs	Display Bag	37.221.12
4.8 mm	13 mm	500 pcs	Box	37.220.05
4.8 mm	14 mm	500 pcs	Box	37.220.14
4.8 mm	14 mm	100 pcs	Display Bag	37.221.14
4.8 mm	16 mm	500 pcs	Box	37.220.06
4.8 mm	16 mm	100 pcs	Display Bag	37.221.06
4.8 mm	20 mm	500 pcs	Box	37.218.05

Size and Pack Selection

Select the required rivet diameter and length according to the materials being joined, the mounting hole and the required grip range. Then choose from the available pack quantities for that size. The quantity options depend on the selected diameter and length; not all combinations are available in every packaging format.
