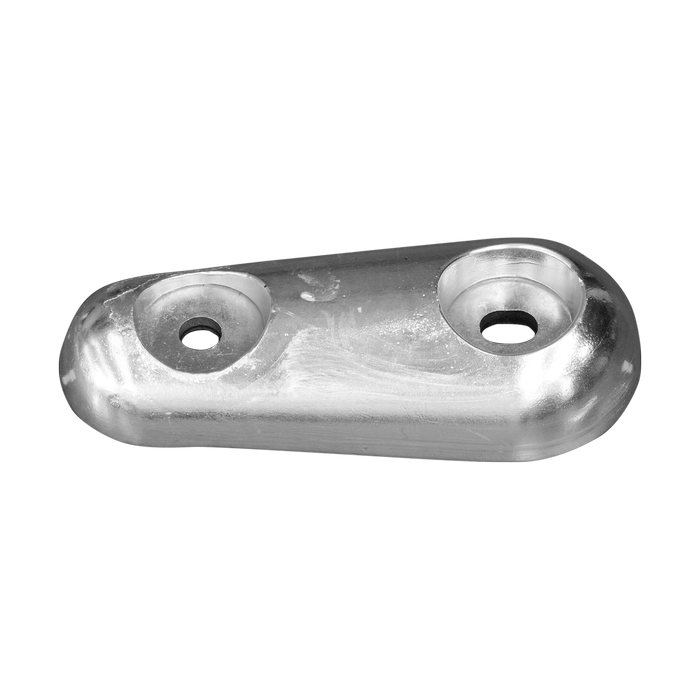

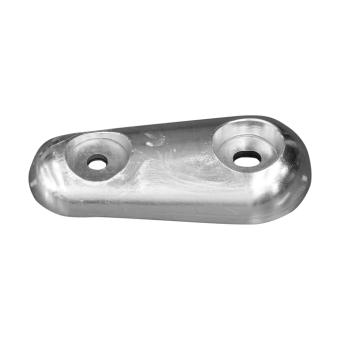

Tecnoseal Zinc Vetus-Type Profiled Bar Bolt-On Sacrificial Anodes

ID 1399383

$ 75.47

1-2 weeks delivery time

Size:

152x68x23
250x75x21

Item:

2400 g
1030 g

Tecnoseal zinc Vetus-Type profiled bar bolt-on sacrificial anodes, available in two sizes with lengths of 152 and 250 mm and weights of 1.03 and 2.40 kg. Tecnoseal 03510 corresponds to original part number ZINK15SC and features 80 mm hole centres, while Tecnoseal 03511 corresponds to ZINK25SC with 140 mm hole centres. Both versions use Ø1 11 mm mounting holes with Ø2 11x15 mm recess dimensions. Select the required model according to overall dimensions, hole-centre distance and weight.

Description
Ask a Question

Tecnoseal Zinc Vetus-Type Profiled Bar Bolt-On Sacrificial Anodes – 1.03–2.40 kg

The Tecnoseal Zinc Vetus-Type Profiled Bar Anodes are profiled bolt-on sacrificial anodes available in two sizes. The models differ in overall length, profile dimensions, height and mounting-hole centre distance.

Tecnoseal 03510 corresponds to Osculati 43.902.05 and original part number ZINK15SC, while Tecnoseal 03511 corresponds to Osculati 43.902.06 and original part number ZINK25SC. Both versions feature Ø1 11 mm mounting holes and Ø2 11x15 mm recess dimensions.

Key Features

Brand: Tecnoseal
Type: Vetus-Type Profiled Bar
Product Type: Bolt-on sacrificial anode
Material: Zinc
Available Models: 03510 and 03511
Osculati Cross References: 03510 / 43.902.05; 03511 / 43.902.06
Original Part Numbers: ZINK15SC and ZINK25SC
Length Range: 152–250 mm
Hole Centre Distance (i): 80–140 mm
Ø1: 11 mm
Ø2: 11x15 mm
Weight Range: 1.03–2.40 kg

Available Models and Technical Specifications

Tecnoseal Code	Osculati Reference	Original Part Number	Weight	Length (l)	a	b	Height (h)	Height (h1)	Hole Centres (i)	Ø1	Ø2
03510	43.902.05	ZINK15SC	1.03 kg / 1030 g	152 mm	52 mm	68 mm	23 mm	29 mm	80 mm	11 mm	11x15 mm
03511	43.902.06	ZINK25SC	2.40 kg / 2400 g	250 mm	55 mm	75 mm	21 mm	37 mm	140 mm	11 mm	11x15 mm

Tecnoseal 03510 / Osculati 43.902.05 / ZINK15SC

Tecnoseal Code: 03510
Osculati Reference: 43.902.05
Original Part Number: ZINK15SC
Material: Zinc
Weight: 1.03 kg / 1030 g / 2.27 lb
Length (l): 152 mm / 5.98 in
a: 52 mm / 2.05 in
b: 68 mm / 2.68 in
Height (h): 23 mm / 0.91 in
Height (h1): 29 mm / 1.14 in
Hole Centres (i): 80 mm / 3.15 in
Ø1: 11 mm / 0.43 in
Ø2: 11x15 mm / 0.43x0.59 in

Tecnoseal 03511 / Osculati 43.902.06 / ZINK25SC

Tecnoseal Code: 03511
Osculati Reference: 43.902.06
Original Part Number: ZINK25SC
Material: Zinc
Weight: 2.40 kg / 2400 g / 5.29 lb
Length (l): 250 mm / 9.84 in
a: 55 mm / 2.17 in
b: 75 mm / 2.95 in
Height (h): 21 mm / 0.83 in
Height (h1): 37 mm / 1.46 in
Hole Centres (i): 140 mm / 5.51 in
Ø1: 11 mm / 0.43 in
Ø2: 11x15 mm / 0.43x0.59 in

Dimensions for Model Selection

l: Overall length
a: Narrow profile width
b: Maximum profile width
h: Anode body height
h1: Overall profile height
i: Hole-centre distance
Ø1: Mounting-hole diameter
Ø2: Mounting recess dimensions

For replacement selection, compare the overall dimensions, hole-centre distance, mounting-hole dimensions and anode weight with the existing installation.
