ID
1399964
$ 251.44
1-2 weeks delivery time
Type:
- Anode KIT
- Anode
Size:
- Ø120x35
Item:
- 2000 g
- 2230 g
Tecnoseal zinc Baglietto-type stern disc sacrificial anodes with steel insert, available as anode only or as a complete kit with mounting components. Both versions measure Ø120 x 35 mm and feature Ø1 50x3 mm, Ø2 32 mm and Ø3 14 mm dimensions. Tecnoseal 00154 is supplied as the anode only and weighs 2.00 kg, while Tecnoseal 00154C is the complete 2.23 kg kit comprising 00154, 00153-PERNOCOMPLETO / nut, PP cap and pad. Select the required version according to supply configuration.
- Description
- Ask a Question
-

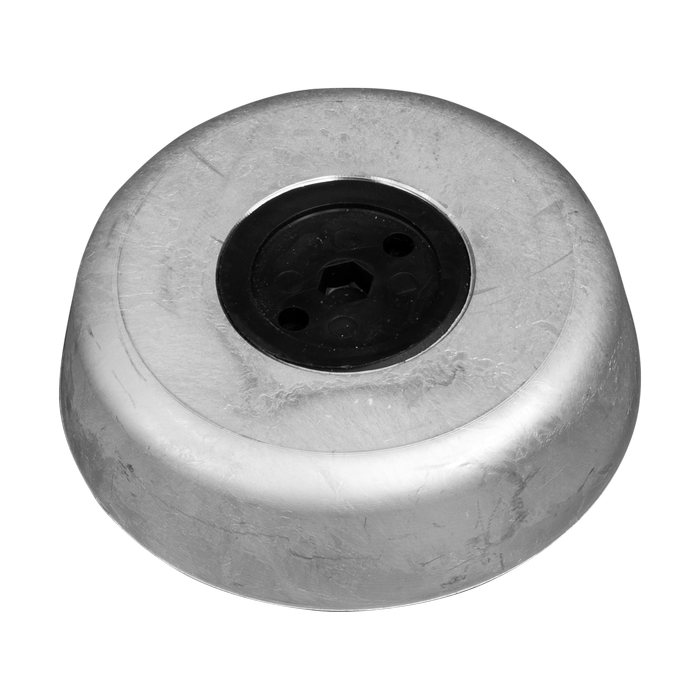

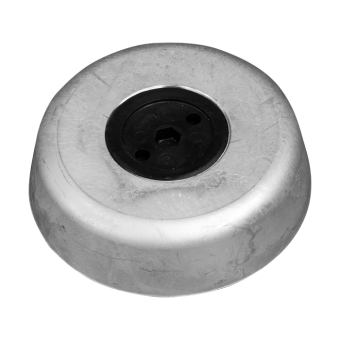

Tecnoseal Zinc Baglietto-Type Stern Disc Sacrificial Anodes with Steel Insert – Anode Only & Complete Kit Ø120x35 mm
The Tecnoseal Zinc Baglietto-Type Stern Disc Anodes are sacrificial anodes for stern applications featuring a steel insert. The same Ø120 × 35 mm anode configuration is available either as anode only or as a complete kit with mounting components.
Both versions share identical main dimensions: Ø120 mm outside diameter, 35 mm height, Ø1 50x3 mm, Ø2 32 mm and Ø3 14 mm. Tecnoseal 00154 is also referenced as Osculati 43.918.28. The complete kit version combines the Tecnoseal 00154 zinc anode with 00153-PERNOCOMPLETO / nut, PP cap and pad.
Key Features
- Brand: Tecnoseal
- Type: Baglietto-type stern disc sacrificial anode
- Material: Zinc
- Insert: Steel insert
- Application: Stern
- Supply Options: Anode only or complete kit
- Available Models: 00154 and 00154C
- Cross Reference: Tecnoseal 00154 / Osculati 43.918.28
- Diameter: Ø120 mm
- Height: 35 mm
- Ø1: 50x3 mm
- Ø2: 32 mm
- Ø3: 14 mm
Available Versions and Technical Specifications
Tecnoseal Code Osculati Reference Supply Weight Diameter (Ø) Height (h) Ø1 Ø2 Ø3 00154 43.918.28 Anode Only 2.00 kg / 2000 g 120 mm 35 mm 50x3 mm 32 mm 14 mm 00154C — Complete Kit 2.23 kg / 2230 g 120 mm 35 mm 50x3 mm 32 mm 14 mm
Tecnoseal 00154 / Osculati 43.918.28 – Ø120 × 35 mm Anode Only
- Tecnoseal Code: 00154
- Osculati Reference: 43.918.28
- Supply: Anode only
- Material: Zinc
- Insert: Steel insert
- Diameter: Ø120 mm / 4.72 in
- Height: 35 mm / 1.38 in
- Ø1: 50x3 mm / 1.97x0.12 in
- Ø2: 32 mm / 1.26 in
- Ø3: 14 mm / 0.55 in
- Weight: 2.00 kg / 2000 g
Tecnoseal 00154C – Ø120 × 35 mm Complete Kit
- Supply: Complete kit
- Material: Zinc
- Insert: Steel insert
- Diameter: Ø120 mm / 4.72 in
- Height: 35 mm / 1.38 in
- Ø1: 50x3 mm / 1.97x0.12 in
- Ø2: 32 mm / 1.26 in
- Ø3: 14 mm / 0.55 in
- Kit Weight: 2.23 kg / 2230 g
- Kit Composition: 00154 + 00153-PERNOCOMPLETO / nut + PP cap + pad
Dimensions for Model Selection
- Ø: Outside diameter
- h: Anode height
- Ø1: Steel insert dimension
- Ø2: Recess diameter
- Ø3: Central hole diameter
Select between the anode-only version and the complete kit according to the required supply configuration.
-
