ID
1399664
$ 77.46
1-2 weeks delivery time
Size:
- 200x65x32
- 320x65x33
Item:
- 1300 g
- 2200 g
Tecnoseal zinc UK-Type bolt-on bar sacrificial anodes for Fairline hull and transom applications, available in two configurations. Tecnoseal 00269E measures 200 x 65 x 32 mm, weighs 1.30 kg and features 110 mm hole centres with Ø12 mm mounting holes. Tecnoseal 00270E measures 320 mm in length and 65 mm in width, weighs 2.20 kg and features 160 mm hole centres, 33 mm height, b 92 mm and c 12x65 mm mounting dimensions. Select the required model according to overall dimensions, hole-centre distance and weight.
- Description
- Ask a Question
-

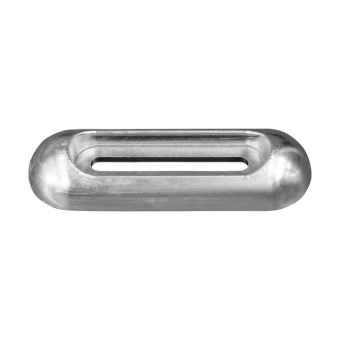

Tecnoseal Zinc UK-Type Fairline Bolt-On Bar Sacrificial Anodes – 1.30–2.20 kg
The Tecnoseal Zinc UK-Type Bar Anodes are bolt-on sacrificial anodes for Fairline hull and transom applications. The range includes two zinc models with different lengths, mounting configurations and hole-centre distances.
Tecnoseal 00269E, also referenced as Osculati 43.912.01, is a 200 mm single-slot bar anode with 110 mm hole centres and Ø12 mm mounting holes. Tecnoseal 00270E, also referenced as Osculati 43.912.03, is a longer 320 mm double-slot bar anode with 160 mm hole centres, b 92 mm and c 12x65 mm dimensions.
Key Features
- Brand: Tecnoseal
- Type: UK Type Bar
- Application: Fairline / Hull and Transom
- Product Type: Bolt-on sacrificial anode
- Material: Zinc
- Available Models: 00269E and 00270E
- Osculati Cross References: 00269E / 43.912.01; 00270E / 43.912.03
- Length Range: 200–320 mm
- Width: 65 mm
- Hole Centre Distance: 110–160 mm
- Weight Range: 1.30–2.20 kg
Available Models and Technical Specifications
Tecnoseal Code Osculati Reference Weight Length (l) a b c Height (h) Hole Centres (i) Ø 00269E 43.912.01 1.30 kg / 1300 g 200 mm 65 mm — — 32 mm 110 mm 12 mm 00270E 43.912.03 2.20 kg / 2200 g 320 mm 65 mm 92 mm 12x65 mm 33 mm 160 mm —

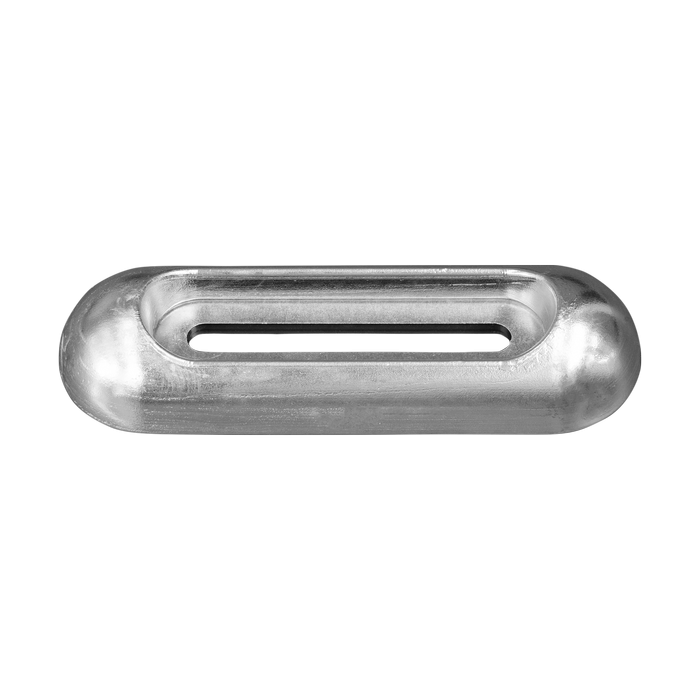

Tecnoseal 00269E / Osculati 43.912.01 – 200 × 65 × 32 mm
- Tecnoseal Code: 00269E
- Osculati Reference: 43.912.01
- Material: Zinc
- Type: UK Type / Fairline
- Weight: 1.30 kg / 1300 g / 2.87 lb
- Length (l): 200 mm / 7.87 in
- Width (a): 65 mm / 2.56 in
- Height (h): 32 mm / 1.26 in
- Hole Centres (i): 110 mm / 4.33 in
- Mounting Hole Diameter (Ø): 12 mm / 0.47 in
Tecnoseal 00270E / Osculati 43.912.03 – 320 × 65 × 33 mm
- Tecnoseal Code: 00270E
- Osculati Reference: 43.912.03
- Material: Zinc
- Type: UK Type / Fairline
- Weight: 2.20 kg / 2200 g / 4.85 lb
- Length (l): 320 mm / 12.60 in
- Width (a): 65 mm / 2.56 in
- b: 92 mm / 3.62 in
- c: 12x65 mm / 0.47x2.56 in
- Height (h): 33 mm / 1.30 in
- Hole Centres (i): 160 mm / 6.30 in
Dimensions for Model Selection
- l: Overall length
- a: Overall width
- b: Mounting-slot spacing dimension for 00270E
- c: Slot dimensions for 00270E
- h: Anode height
- i: Hole-centre distance
- Ø: Mounting-hole diameter for 00269E
For replacement selection, compare the overall dimensions, mounting dimensions, hole-centre distance and anode weight with the existing installation.
-
