Tecnoseal aluminium disc sacrificial anodes for rudders and trim tabs, available in Standard and Heavy configurations with outside diameters from Ø50 to Ø225 mm. The range includes single aluminium anodes weighing from 30 g to 2.50 kg, with heights from 11 to 33 mm and different central recess and fixing-hole diameters. Tecnoseal anodes are supplied individually without mounting hardware.

Description
Ask a Question

Tecnoseal Aluminium Disc Sacrificial Anodes for Rudders & Trim Tabs – Standard & Heavy Type Ø50–225 mm

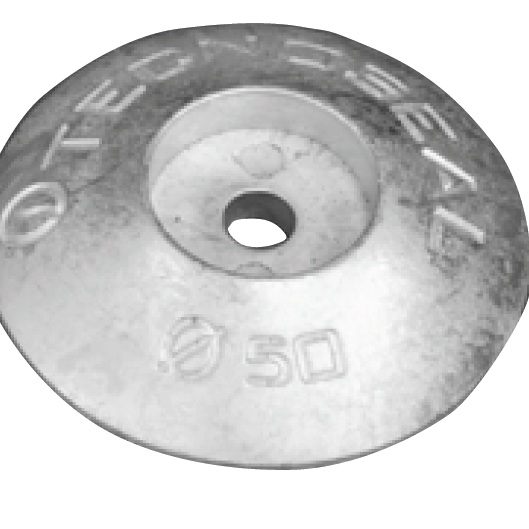

The Tecnoseal Aluminium Disc Anodes are circular sacrificial anodes for marine rudders and flaps / trim tabs. The aluminium range includes Standard Type and Heavy Type versions with outside diameters from Ø50 to Ø225 mm.

The models differ in outside diameter, overall height, central recess diameter, fixing-hole diameter and weight. Tecnoseal supplies these disc anodes individually and without mounting hardware.

The Standard Type Tecnoseal models from Ø50 to Ø140 mm are also represented in the Osculati catalogue under corresponding article numbers. These cross-references are included below for easier product identification.

Key Features

Brand: Tecnoseal
Product Type: Aluminium disc sacrificial anode
Material: Aluminium
Applications: Rudders and flaps / trim tabs
Available Types: Standard and Heavy
Available Diameters: Ø50, Ø70, Ø90, Ø110, Ø125, Ø140, Ø190 and Ø225 mm
Weight Range: 0.03–2.50 kg
Mounting: Central fixing hole with recessed centre
Supply: Single anode without hardware
Osculati Cross-References: Available for Standard Type Ø50–140 mm models

Available Aluminium Models

Tecnoseal Code	Osculati Reference	Type	Diameter	Height	Ø1	Ø2	Weight
00100AL	43.919.01	Standard	50 mm	11 mm	20 mm	6.5 mm	0.03 kg / 30 g
00100PAL	—	Heavy	50 mm	16 mm	21 mm	7.5 mm	0.05 kg / 50 g
00101AL	43.919.02	Standard	70 mm	13 mm	22 mm	8.5 mm	0.08 kg / 80 g
00101PAL	—	Heavy	70 mm	17 mm	22 mm	8.5 mm	0.11 kg / 110 g
00102AL	43.919.03	Standard	90 mm	17 mm	31 mm	8.5 mm	0.17 kg / 170 g
00102PAL	—	Heavy	90 mm	20 mm	27 mm	10 mm	0.20 kg / 200 g
00103AL	43.919.04	Standard	110 mm	18 mm	31 mm	10.5 mm	0.27 kg / 270 g
00103PAL	—	Heavy	110 mm	22 mm	31 mm	12 mm	0.40 kg / 400 g
00104AL	43.919.05	Standard	125 mm	21 mm	31 mm	10.5 mm	0.39 kg / 390 g
00104PAL	—	Heavy	125 mm	26 mm	31 mm	11 mm	0.50 kg / 500 g
00105AL	43.919.06	Standard	140 mm	30 mm	33 mm	12.5 mm	0.57 kg / 570 g
00105PAL	—	Heavy	140 mm	33 mm	31 mm	11 mm	0.78 kg / 780 g
00106AL	—	Heavy	190 mm	27 mm	35 mm	13 mm	1.50 kg / 1500 g
00107AL	—	Heavy	225 mm	33 mm	50 mm	14 mm	2.50 kg / 2500 g

Standard Type Aluminium Disc Anodes

The Standard Type aluminium range includes six sizes from Ø50 to Ø140 mm. These models also have corresponding Osculati references with matching dimensions and weights.

Tecnoseal 00100AL / Osculati 43.919.01: Ø50 × 11 mm, Ø1 20 mm, Ø2 6.5 mm, 30 g.
Tecnoseal 00101AL / Osculati 43.919.02: Ø70 × 13 mm, Ø1 22 mm, Ø2 8.5 mm, 80 g.
Tecnoseal 00102AL / Osculati 43.919.03: Ø90 × 17 mm, Ø1 31 mm, Ø2 8.5 mm, 170 g.
Tecnoseal 00103AL / Osculati 43.919.04: Ø110 × 18 mm, Ø1 31 mm, Ø2 10.5 mm, 270 g.
Tecnoseal 00104AL / Osculati 43.919.05: Ø125 × 21 mm, Ø1 31 mm, Ø2 10.5 mm, 390 g.
Tecnoseal 00105AL / Osculati 43.919.06: Ø140 × 30 mm, Ø1 33 mm, Ø2 12.5 mm, 570 g.

Heavy Type Aluminium Disc Anodes

The Heavy Type aluminium range includes eight sizes from Ø50 to Ø225 mm.

00100PAL: Ø50 × 16 mm, Ø1 21 mm, Ø2 7.5 mm, 50 g.
00101PAL: Ø70 × 17 mm, Ø1 22 mm, Ø2 8.5 mm, 110 g.
00102PAL: Ø90 × 20 mm, Ø1 27 mm, Ø2 10 mm, 200 g.
00103PAL: Ø110 × 22 mm, Ø1 31 mm, Ø2 12 mm, 400 g.
00104PAL: Ø125 × 26 mm, Ø1 31 mm, Ø2 11 mm, 500 g.
00105PAL: Ø140 × 33 mm, Ø1 31 mm, Ø2 11 mm, 780 g.
00106AL: Ø190 × 27 mm, Ø1 35 mm, Ø2 13 mm, 1500 g.
00107AL: Ø225 × 33 mm, Ø1 50 mm, Ø2 14 mm, 2500 g.

Osculati Cross-References

Tecnoseal Code	Osculati Code	Dimensions	Weight
00100AL	43.919.01	Ø50 × 11 mm	30 g
00101AL	43.919.02	Ø70 × 13 mm	80 g
00102AL	43.919.03	Ø90 × 17 mm	170 g
00103AL	43.919.04	Ø110 × 18 mm	270 g
00104AL	43.919.05	Ø125 × 21 mm	390 g
00105AL	43.919.06	Ø140 × 30 mm	570 g

Dimensions for Replacement Selection

Ø: Outside diameter of the anode
h: Overall height
Ø1: Diameter of the recessed central section
Ø2: Central fixing-hole diameter

For replacement selection, compare the outside diameter, overall height, central recess diameter and fixing-hole diameter with the existing anode.
