ID
1399365
$ 33.27
1-2 weeks delivery time
Size:
- 98x44x18
- 148x58x25
- 247x63x30
- 290x53x33
- 350x68x36
Item:
- 4500 g
- 2700 g
- 310 g
- 1030 g
- 2300 g

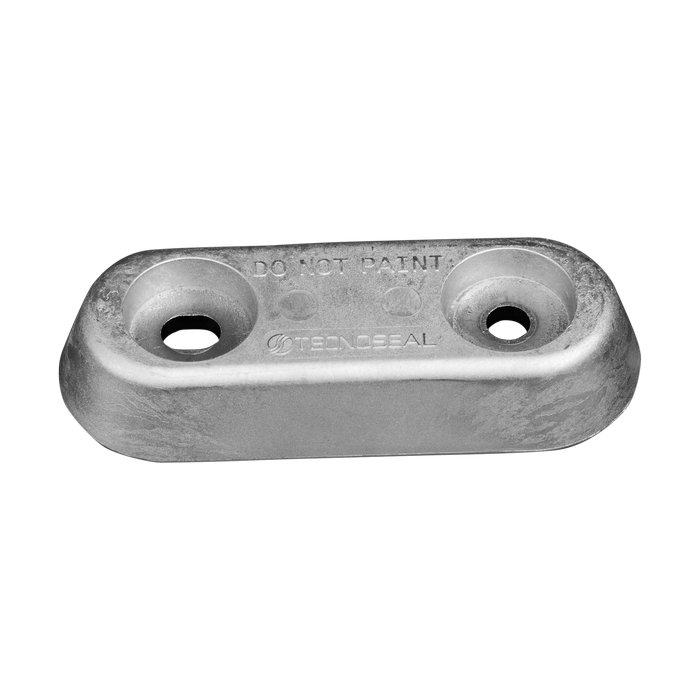

Tecnoseal zinc Vetus-type oval plate bolt-on sacrificial anodes for hull and transom applications. The range includes five models from 98 to 350 mm in length, 44 to 68 mm in width and 18 to 36 mm in height, with weights from 0.31 to 4.50 kg. Tecnoseal 00220-0, also referenced as Osculati 43.901.99, is the compact 98 x 44 x 18 mm version with 48.5 mm hole centres and Ø10.5 mm mounting holes. The larger models feature hole-centre distances from 80 to 200 mm, with Ø1 dimensions of 31–38 mm and slotted Ø2 mounting holes of 11x15 or 13x25 mm. Tecnoseal 00220 corresponds to Osculati 43.902.00 and original part number ZINK15C; 00221 corresponds to Osculati 43.902.01 and ZINK25C; 00222 corresponds to Osculati 43.902.11; and 00223 corresponds to Osculati 43.902.02 and ZINK35C.
- Description
- Ask a Question
-

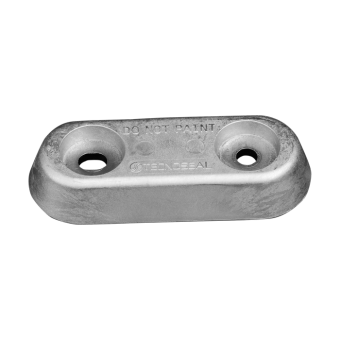

Tecnoseal Zinc Vetus-Type Oval Plate Bolt-On Sacrificial Anodes – 0.31–4.50 kg
The Tecnoseal Zinc Vetus-Type Oval Plate Anodes are bolt-on sacrificial anodes for hull and transom applications. The range includes five zinc models with different overall dimensions, weights, hole-centre distances and mounting configurations.
Tecnoseal 00220-0, also referenced as Osculati 43.901.99, is the compact version, measuring 98 x 44 x 18 mm with 48.5 mm hole centres and Ø10.5 mm mounting holes. The larger models range from 148 to 350 mm in length and use Ø1 recess dimensions from 31 to 38 mm with Ø2 slotted mounting holes of 11x15 or 13x25 mm.
Tecnoseal 00220 corresponds to Osculati 43.902.00 and original part number ZINK15C; Tecnoseal 00221 corresponds to Osculati 43.902.01 and ZINK25C; Tecnoseal 00222 corresponds to Osculati 43.902.11; and Tecnoseal 00223 corresponds to Osculati 43.902.02 and ZINK35C.
Key Features
- Brand: Tecnoseal
- Type: Vetus Type / Oval Plate
- Product Type: Bolt-on sacrificial anode
- Material: Zinc
- Application: Hull and transom
- Available Models: 00220-0, 00220, 00221, 00222 and 00223
- Osculati Cross References: 00220-0 / 43.901.99; 00220 / 43.902.00; 00221 / 43.902.01; 00222 / 43.902.11; 00223 / 43.902.02
- Original Part Numbers: ZINK15C, ZINK25C and ZINK35C
- Length Range: 98–350 mm
- Width Range: 44–68 mm
- Height Range: 18–36 mm
- Hole Centre Distance (i): 48.5–200 mm
- Weight Range: 0.31–4.50 kg
Available Models and Technical Specifications
Tecnoseal Code Osculati Reference Original Part Number Weight Length (l) Width (a) Height (h) Hole Centres (i) Mounting Dimensions 00220-0 43.901.99 — 0.31 kg / 310 g 98 mm 44 mm 18 mm 48.5 mm Ø10.5 mm 00220 43.902.00 ZINK15C 1.03 kg / 1030 g 148 mm 58 mm 25 mm 80 mm Ø1 31 mm / Ø2 11x15 mm 00221 43.902.01 ZINK25C 2.30 kg / 2300 g 247 mm 63 mm 30 mm 140 mm Ø1 32 mm / Ø2 13x25 mm 00222 43.902.11 — 2.70 kg / 2700 g 290 mm 53 mm 33 mm 200 mm Ø1 32 mm / Ø2 13x25 mm 00223 43.902.02 ZINK35C 4.50 kg / 4500 g 350 mm 68 mm 36 mm 200 mm Ø1 38 mm / Ø2 13x25 mm
Tecnoseal 00220-0 / Osculati 43.901.99 – 98 × 44 × 18 mm
- Tecnoseal Code: 00220-0
- Osculati Reference: 43.901.99
- Material: Zinc
- Weight: 0.31 kg / 310 g / 0.68 lb
- Length (l): 98 mm / 3.86 in
- Width (a): 44 mm / 1.73 in
- Height (h): 18 mm / 0.71 in
- Hole Centres (i): 48.5 mm / 1.91 in
- Mounting Hole Diameter (Ø): 10.5 mm / 0.41 in
Tecnoseal 00220 / Osculati 43.902.00 / ZINK15C – 148 × 58 × 25 mm
- Tecnoseal Code: 00220
- Osculati Reference: 43.902.00
- Original Part Number: ZINK15C
- Material: Zinc
- Weight: 1.03 kg / 1030 g / 2.27 lb
- Length (l): 148 mm / 5.83 in
- Width (a): 58 mm / 2.28 in
- Height (h): 25 mm / 0.98 in
- Hole Centres (i): 80 mm / 3.15 in
- Ø1: 31 mm / 1.22 in
- Ø2: 11x15 mm / 0.43x0.59 in
Tecnoseal 00221 / Osculati 43.902.01 / ZINK25C – 247 × 63 × 30 mm
- Tecnoseal Code: 00221
- Osculati Reference: 43.902.01
- Original Part Number: ZINK25C
- Material: Zinc
- Weight: 2.30 kg / 2300 g / 5.07 lb
- Length (l): 247 mm / 9.72 in
- Width (a): 63 mm / 2.48 in
- Height (h): 30 mm / 1.18 in
- Hole Centres (i): 140 mm / 5.51 in
- Ø1: 32 mm / 1.26 in
- Ø2: 13x25 mm / 0.51x0.98 in
Tecnoseal 00222 / Osculati 43.902.11 – 290 × 53 × 33 mm
- Tecnoseal Code: 00222
- Osculati Reference: 43.902.11
- Material: Zinc
- Weight: 2.70 kg / 2700 g / 5.95 lb
- Length (l): 290 mm / 11.42 in
- Width (a): 53 mm / 2.09 in
- Height (h): 33 mm / 1.30 in
- Hole Centres (i): 200 mm / 7.87 in
- Ø1: 32 mm / 1.26 in
- Ø2: 13x25 mm / 0.51x0.98 in
Tecnoseal 00223 / Osculati 43.902.02 / ZINK35C – 350 × 68 × 36 mm
- Tecnoseal Code: 00223
- Osculati Reference: 43.902.02
- Original Part Number: ZINK35C
- Material: Zinc
- Weight: 4.50 kg / 4500 g / 9.92 lb
- Length (l): 350 mm / 13.78 in
- Width (a): 68 mm / 2.68 in
- Height (h): 36 mm / 1.42 in
- Hole Centres (i): 200 mm / 7.87 in
- Ø1: 38 mm / 1.50 in
- Ø2: 13x25 mm / 0.51x0.98 in
Dimensions for Model Selection
- l: Overall length
- a: Overall width
- h: Anode height
- i: Hole-centre distance
- Ø: Mounting-hole diameter for 00220-0
- Ø1: Recess diameter for 00220–00223
- Ø2: Slotted mounting-hole dimensions for 00220–00223
For replacement selection, compare the overall dimensions, hole-centre distance, mounting dimensions and anode weight with the existing installation.
-
