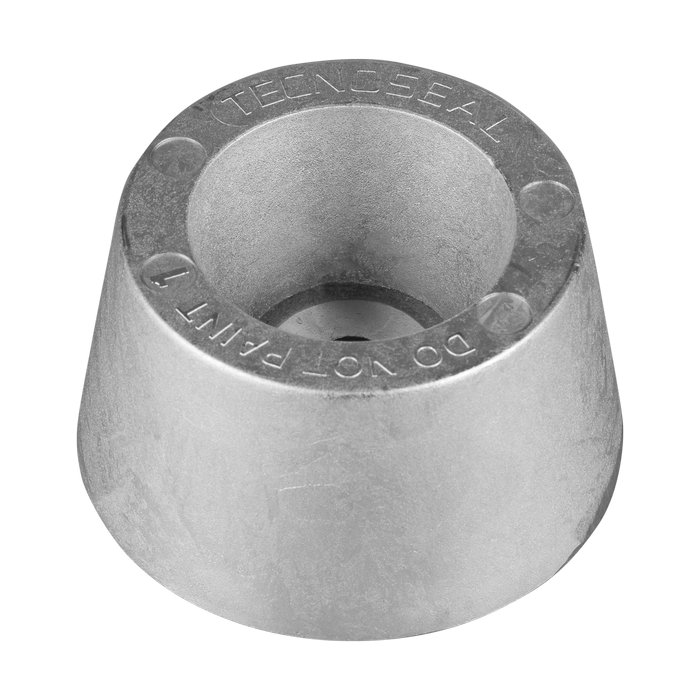

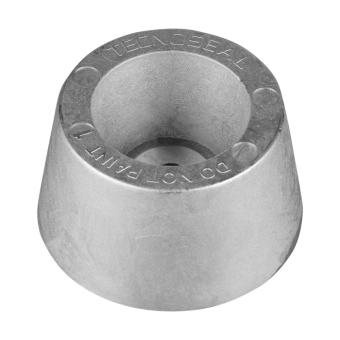

Tecnoseal 03503 Zinc Vetus-Type Conical Plate Sacrificial Anode Ø79x45 mm

ID 1399860

$ 71.38

1-2 weeks delivery time

- +

Add to cart

Tecnoseal 03503 zinc Vetus-Type conical plate sacrificial anode for hull and transom applications. The anode measures Ø79 x 45 mm and weighs 1.05 kg. Technical dimensions include Ø1 11 mm, Ø2 46 mm and Ø3 34 mm. Select this model where the overall diameter, height and mounting dimensions match the existing installation.

Description
Ask a Question

Tecnoseal 03503 / Osculati 43.901.00 Zinc Vetus-Type Conical Plate Sacrificial Anode – Ø79x45 mm

The Tecnoseal 03503, also referenced as Osculati 43.901.00, is a zinc Vetus-Type conical plate sacrificial anode for hull and transom applications. Its conical body measures Ø79 mm in overall diameter and 45 mm in height.

The anode weighs 1.05 kg and features Ø1 11 mm, Ø2 46 mm and Ø3 34 mm dimensions for replacement matching.

Key Features

Brand: Tecnoseal
Product Code: 03503
Osculati Reference: 43.901.00
Type: Vetus-Type Conical Plate
Product Type: Sacrificial anode
Material: Zinc
Application: Hull and transom
Weight: 1.05 kg / 1050 g / 2.31 lb

Technical Specifications

Parameter	Value
Tecnoseal Code	03503
Osculati Reference	43.901.00
Material	Zinc
Weight	1.05 kg / 1050 g / 2.31 lb
Height (h)	45 mm / 1.77 in
Overall Diameter (Ø)	79 mm / 3.11 in
Ø1	11 mm / 0.43 in
Ø2	46 mm / 1.81 in
Ø3	34 mm / 1.34 in

Tecnoseal 03503 / Osculati 43.901.00 – Ø79 × 45 mm

Tecnoseal Code: 03503
Osculati Reference: 43.901.00
Material: Zinc
Weight: 1.05 kg / 1050 g / 2.31 lb
Height (h): 45 mm / 1.77 in
Overall Diameter (Ø): 79 mm / 3.11 in
Ø1: 11 mm / 0.43 in
Ø2: 46 mm / 1.81 in
Ø3: 34 mm / 1.34 in

Dimensions for Model Selection

h: Overall height
Ø: Overall diameter
Ø1: Central mounting-hole diameter
Ø2: Upper conical diameter
Ø3: Lower internal diameter

For replacement selection, compare the overall diameter, height and Ø1, Ø2 and Ø3 dimensions with the existing installation.
