ID
1399232
$ 41.35
1-2 weeks delivery time
Size:
- 120x78x25
- 135x87x35
- 140x90x42
- 160x100x40 i=200
- 160x100x40 i=220
Item:
- 1000 g
- 1800 g
- 2100 g
- 3100 g
Tecnoseal zinc Teardrop Type bolt-on sacrificial anodes with mounting strap and slotted fixing holes. The range includes five models weighing from 1.00 to 3.10 kg, with anode body dimensions from 120 × 78 × 25 mm to 160 × 100 × 40 mm, mounting dimension i of 200 or 220 mm and slotted holes of 13 × 25 or 13 × 35 mm. Strap sizes are 250 × 25 × 5 mm or 255 × 25 × 5 mm. Select the required version according to body dimensions, mounting dimension i, slot size and strap dimensions.
- Description
- Ask a Question
-

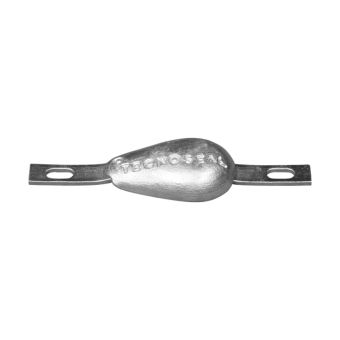

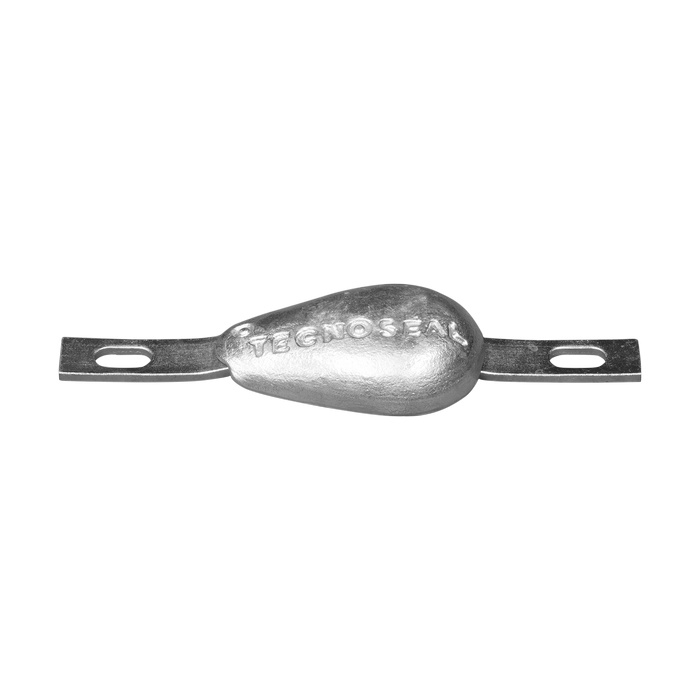

Tecnoseal Zinc Teardrop Type Bolt-On Sacrificial Anodes with Slotted Holes – 1.00–3.10 kg
The Tecnoseal Zinc Teardrop Type Bolt-On Anodes are sacrificial anodes with integrated mounting straps and slotted fixing holes. The range includes five zinc variants with different body dimensions, mounting dimensions and fixing-slot sizes.
For replacement selection, compare the anode body dimensions together with mounting dimension i, slotted-hole dimensions and strap size.
Key Features
- Brand: Tecnoseal
- Product Type: Bolt-on sacrificial anode with strap
- Type: Teardrop Type
- Material: Zinc
- Mounting: Bolt-on
- Fixing: Slotted holes
- Available Models: 00350/B, 00351/1, 00351/2/B, 00352/A and 00352-A1
- Weight Range: 1.00–3.10 kg
- Body Length Range (l): 120–160 mm
- Body Width Range (a): 78–100 mm
- Body Height Range (h): 25–42 mm
- Mounting Dimension (i): 200–220 mm
- Slotted Hole Sizes: 13 × 25 mm and 13 × 35 mm
Available Models and Technical Specifications
Tecnoseal Code Weight l a h i Slotted Hole Strap / Insert 00350/B 1.00 kg / 1000 g 120 mm 78 mm 25 mm 200 mm 13 × 35 mm 255 × 25 × 5 mm 00351/1 1.80 kg / 1800 g 135 mm 87 mm 35 mm 200 mm 13 × 25 mm 250 × 25 × 5 mm 00351/2/B 2.10 kg / 2100 g 140 mm 90 mm 42 mm 200 mm 13 × 25 mm 250 × 25 × 5 mm 00352/A 3.10 kg / 3100 g 160 mm 100 mm 40 mm 200 mm 13 × 25 mm 250 × 25 × 5 mm 00352-A1 3.10 kg / 3100 g 160 mm 100 mm 40 mm 220 mm 13 × 25 mm 250 × 25 × 5 mm
Tecnoseal 00350/B – 1000 g
- Body Dimensions: 120 × 78 × 25 mm
- Mounting Dimension i: 200 mm
- Slotted Hole: 13 × 35 mm
- Strap: 255 × 25 × 5 mm
- Weight: 1.00 kg / 1000 g
Tecnoseal 00351/1 – 1800 g
- Body Dimensions: 135 × 87 × 35 mm
- Mounting Dimension i: 200 mm
- Slotted Hole: 13 × 25 mm
- Strap: 250 × 25 × 5 mm
- Weight: 1.80 kg / 1800 g
Tecnoseal 00351/2/B – 2100 g
- Body Dimensions: 140 × 90 × 42 mm
- Mounting Dimension i: 200 mm
- Slotted Hole: 13 × 25 mm
- Strap: 250 × 25 × 5 mm
- Weight: 2.10 kg / 2100 g
Tecnoseal 00352/A – 3100 g
- Body Dimensions: 160 × 100 × 40 mm
- Mounting Dimension i: 200 mm
- Slotted Hole: 13 × 25 mm
- Strap: 250 × 25 × 5 mm
- Weight: 3.10 kg / 3100 g
Tecnoseal 00352-A1 – 3100 g
- Body Dimensions: 160 × 100 × 40 mm
- Mounting Dimension i: 220 mm
- Slotted Hole: 13 × 25 mm
- Strap: 250 × 25 × 5 mm
- Weight: 3.10 kg / 3100 g
Dimensions for Model Selection
- l: Anode body length
- a: Anode body width
- h: Anode body height
- i: Mounting dimension shown in the Tecnoseal drawing
- Slotted Hole: Fixing slot dimensions
- Strap / Insert: Integrated mounting strap dimensions
For replacement selection, compare the body dimensions together with mounting dimension i, slotted-hole size and strap dimensions.
-
