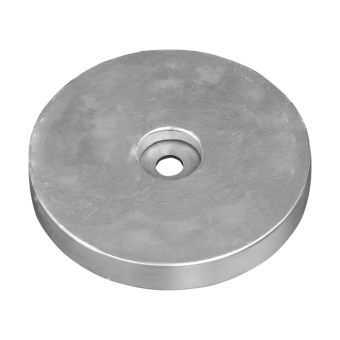

Tecnoseal Zinc Large Disc Sacrificial Anodes with Steel Insert for Hull & Transom

Tecnoseal Zinc Large Disc Sacrificial Anodes with Steel Insert for Hull & Transom – Ø150–300 mm

The Tecnoseal Zinc Large Disc Anodes are large-size sacrificial disc anodes with a steel insert for hull and transom applications. The range includes nine zinc models with different outside diameters, heights, central-hole dimensions and weights.

Available sizes range from Ø150 × 25 mm to Ø300 × 25 mm, with weights from 2.80 to 11.90 kg. Select the required model according to outside diameter, height, central hole diameter and weight.

Key Features

• Brand: Tecnoseal
• Product Type: Large disc sacrificial anode
• Material: Zinc
• Insert: Steel
• Applications: Hull and transom
• Available Models: 00158, 00159, 00156-1, 00156-2, 00156-3, 00156, 00157, 00157-1 and 00157-2
• Outside Diameter Range: Ø150–300 mm
• Height Range: 25–35 mm
• Central Hole Diameters: Ø14, Ø16 and Ø17.5 mm
• Weight Range: 2.80–11.90 kg

Available Models and Technical Specifications

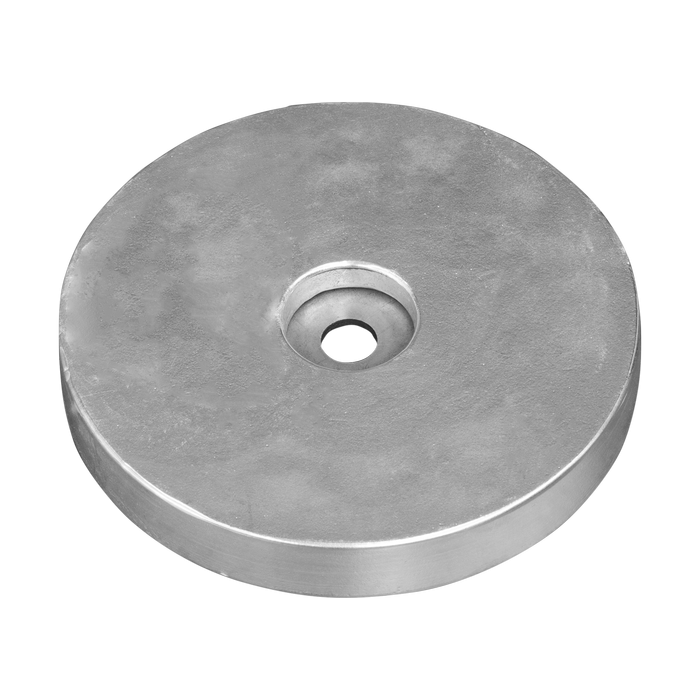

Tecnoseal 00158 – 2800 g

• Material: Zinc
• Diameter: Ø150 mm / 5.91 in
• Height: 25 mm / 0.98 in
• Central Hole: Ø14 mm / 0.55 in
• Weight: 2.80 kg / 2800 g

Tecnoseal 00159 – 3240 g

• Material: Zinc
• Diameter: Ø160 mm / 6.30 in
• Height: 25 mm / 0.98 in
• Central Hole: Ø14 mm / 0.55 in
• Weight: 3.24 kg / 3240 g

Tecnoseal 00156-1 – 5060 g

• Material: Zinc
• Diameter: Ø200 mm / 7.87 in
• Height: 25 mm / 0.98 in
• Central Hole: Ø16 mm / 0.63 in
• Weight: 5.06 kg / 5060 g

Tecnoseal 00156-2 – 8600 g

• Material: Zinc
• Diameter: Ø230 mm / 9.06 in
• Height: 32 mm / 1.26 in
• Central Hole: Ø16 mm / 0.63 in
• Weight: 8.60 kg / 8600 g

Tecnoseal 00156-3 – 6600 g

• Material: Zinc
• Diameter: Ø200 mm / 7.87 in
• Height: 32 mm / 1.26 in
• Central Hole: Ø16 mm / 0.63 in
• Weight: 6.60 kg / 6600 g

Tecnoseal 00156 – 7000 g

• Material: Zinc
• Diameter: Ø230 mm / 9.06 in
• Height: 25 mm / 0.98 in
• Central Hole: Ø14 mm / 0.55 in
• Weight: 7.00 kg / 7000 g

Tecnoseal 00157 – 8300 g

• Material: Zinc
• Diameter: Ø230 mm / 9.06 in
• Height: 30 mm / 1.18 in
• Central Hole: Ø14 mm / 0.55 in
• Weight: 8.30 kg / 8300 g

Tecnoseal 00157-1 – 9200 g

• Material: Zinc
• Diameter: Ø230 mm / 9.06 in
• Height: 35 mm / 1.38 in
• Central Hole: Ø14 mm / 0.55 in
• Weight: 9.20 kg / 9200 g

Tecnoseal 00157-2 – 11900 g

• Material: Zinc
• Diameter: Ø300 mm
• Height: 25 mm
• Central Hole: Ø17.5 mm
• Weight: 11.90 kg / 11900 g

Dimensions for Model Selection

• Ø: Outside diameter
• h: Anode height
• Ø1: Central mounting hole diameter

For replacement selection, compare the outside diameter, height, central hole diameter and anode weight with the existing installation.
